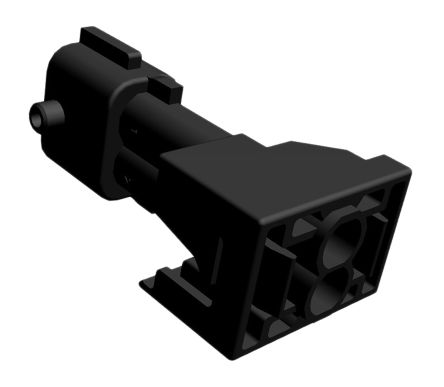

点击放大查看
1-965421-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 5mm Crimp ST Timer - Connectors FLA-STE-GEH2,8 2P Headers & Wire Housings FLA-STE-GEH2,8 2P Conn Housing PL 2 POS 5mm Crimp ST Product Highlights:Tab HousingConnector Type = Junior TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 2Housing Color = BlackSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT TIMER, CONNECTOR HOUSING, 2 POS TE Connectivity Junior Power Timer 系列 2路 面板安装 黑色 公 外壳 , 压接端接 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 2000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 连接器阻抗 | 2.79 x 0.81 | ||
机械参数
| 颜色 | Blue | 深度 | 38 mm |
| 间距 | 5 mm | 高度 | 20.6 mm |
| 重量 | 0.002 | 材料（通用） | :PBT-GF 30 |
| 包装方式 | Bulk | 触头类型 | Tab |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing | 接触镀层 | :- |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 连接器样式 | Plug | 触头材料 | :- |
| 壳体材料 | PBT - GF | 总长度 | 17.7 mm |
| 第一触头极性 | :Pin | 连接器颜色 | :Black |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 外壳尺寸-插件 | :- |
| 中心触点表面处理 | 5.0 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :JPT |
| 预加载 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | ||
