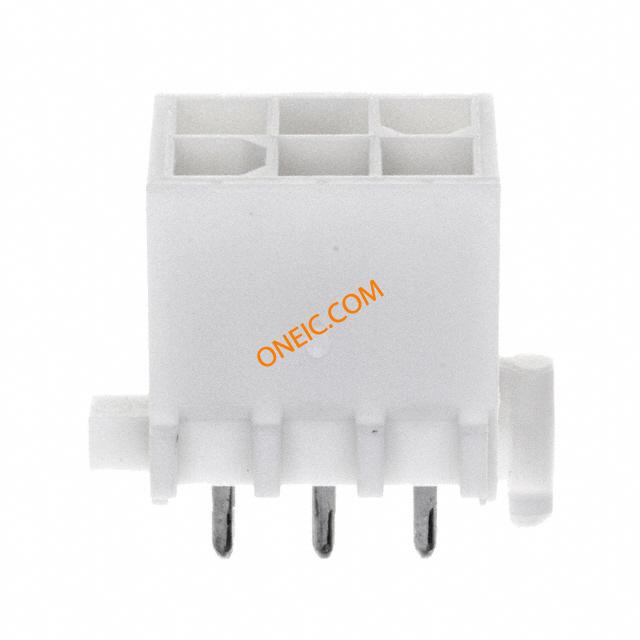

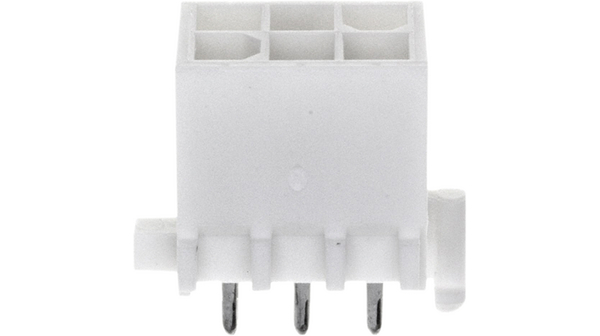

1-770178-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 4.14mm Solder ST Thru-Hole 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 6POS VERT .163 GOLD TE Connectivity MATE-N-LOK Series 4.14mm Pitch 6 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 6 POS GOLD DUAL ROW Conn Power HDR 6 POS 4.14mm Solder ST Thru-Hole 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HEADER, 6WAY HEADER,PIN,MINI-UNIVERSALMATE-N-LOK,6POSITION,PCBMOUNT,DETENTLOCK Pin header Pitch4.14 mm Poles 2 x 3 straight MATE-N-LOK Mini Universal, 1-770178-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 6路 直 PCB 针座, 焊接端接, 9.5A , 通孔 06P MINI UMNL ASSY VO SNAU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Mini-Universal MATE-N-LOK Series | 额定电压 | 600 Vac |
| 开关功能 | Latched | 最大额定电流 | 9.5A |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 19.15 mm |
| 间距 | 4.14 mm | 宽度 | :13.97mm |
| 高度 | 11.89 mm | 长度 | :13.49mm |
| 重量 | 0.001 | 直径 | 14.25 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 6 |
| 接触件端接 | :Solder | 位数 | 6 |
| 安装孔直径 | :3.18mm | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 | 加载位置数 | All |
