1-640456-4

点击放大查看

1-640456-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 14POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 14 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 14P Straight Post tin Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,FrictionLock;MTA-100;14;250VAC;Polyester;Tin;CopperAlloy;Tin 14P MTA100 HDR ASSY F/L SQ STR
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
海关税号85369010无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构CSA,ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac开关功能Friction Lock
接触电阻6 mohm额定交流电压250
最大额定电流5A最小供电电压250VAC

机械参数

颜色Natural深度5.72 mm
间距2.54 mm高度10.03 mm
重量0.002包装方式Bulk
端口尺寸0.025in.遮蔽类型No
端接方式Solder触头类型Male Pin
引脚长度（针脚）0.14"极化Polarizing Slot
第二连接器With触点形状Square
外壳颜色White安装类型Vertical
行程角度Straight连接器类型Header, Unshrouded
接触镀层Tin紧固类型Friction Lock
安装样式Through Hole排数1
连接器用途Header锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
总长度35.56 mm安装特性Without
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数14
接触件端接:Through Hole Vertical位数14
后壳中断功能Without中心触点镀层工艺0.100in.
柱体长度（配合）0.14in.安装孔直径0.04"
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]恢复后小径No

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100CAD图纸3D CAD Model
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
1697060.pdf
在线文档
1-640456-4

相关型号

4-643816-4

4-643816-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Assembly14 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY POL RIB

¥6.5960
详情
1-640443-4

1-640443-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Headers & Wire Housings 14P ASSY GRN Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY GRN

¥8.5680
详情
4-641242-4

4-641242-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 24AWG MTA100 Headers & Wire Housings 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥15.4360
详情
1-640623-4

1-640623-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100

详情
1-641191-4

1-641191-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS .100 GOLD

详情
1-644540-4

1-644540-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS .100 22AWG POLAR Headers & Wire Housings 14P MTA100 CONN ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:14 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY F/T POL

¥5.5760
详情
1-641242-4

1-641242-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS 24AWG FEED THRU Headers & Wire Housings 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥16.4560
详情
暂无图片

1-641193-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 14POS .100 GOLD

详情
4-640622-4

4-640622-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 26AWG MTA100 Headers & Wire Housings 14P FD THRU ASSY BLUE Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 FD THRU ASSY BLUE

¥6.5960
详情
1-1375820-4

1-1375820-4

te connectivity / amp

Conn Housing RCP 14 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 14POS CST-100 II Headers & Wire Housings RECPT HOUSING 14 POS CST-100 Conn Housing RCP 14 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 14 POS

¥1.5436
详情
4-640442-4

4-640442-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 26AWG MTA100 Headers & Wire Housings REC 14P C/E 26AWG W/O TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector14 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14P MTA100 CONN ASSY BLU

¥8.2280
详情
4-640443-4

4-640443-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Headers & Wire Housings REC 14P C/E 28AWG W/O TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14P MTA100 CONN ASSY GRN

¥6.3240
详情
4-643813-4

4-643813-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 22AWG MTA100 Headers & Wire Housings REC 14P C/E 22AWG W/ TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, RCPT, 14POS, 1ROW 14P MTA100 CONN ASSY POL RIB

¥6.7238
详情
4-644540-4

4-644540-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 14P MTA100 CONN ASSY F/T POL MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 22AWG MTA100 14P MTA100 CONN ASSY F/T POL 14P MTA100 CONN ASSY F/T POL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.2360
详情
4-644563-4

4-644563-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 24AWG MTA100 Headers & Wire Housings 14P MTA100 CONN ASSY F/T 24AWG 14P MTA100 CONN ASSY F/T 24AWG 14P MTA100 CONN ASSY F/T 24AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.5960
详情

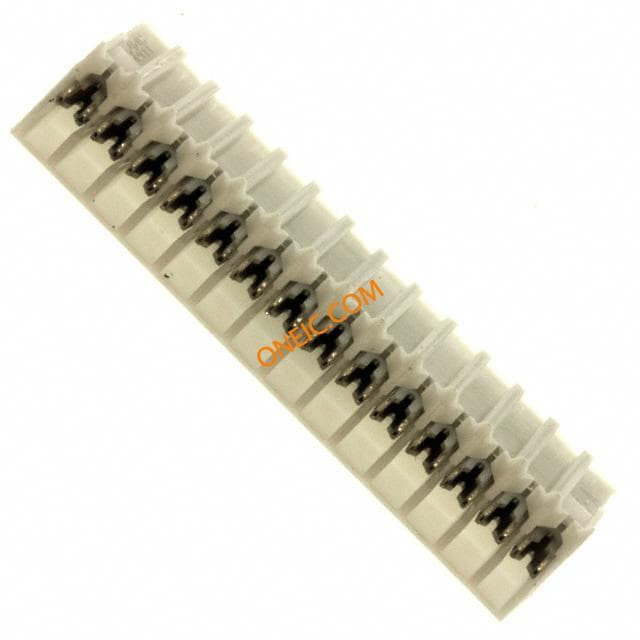

4-643814-4
