点击放大查看

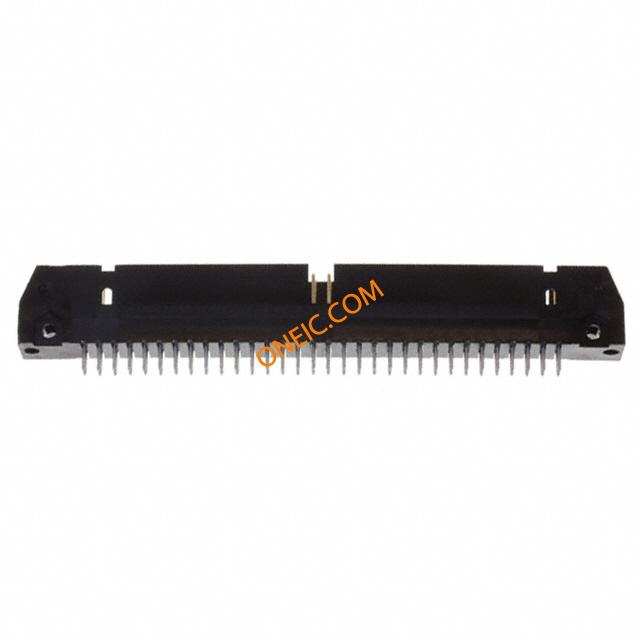

1-5102156-2

制造商	TE Connectivity Ltd.
描述	Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VERTICAL Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 64POS, 2ROW AMPLATCHHEADER-PIN,4SIDEDVERTICAL,64P A/L UNIV HDR 64P VERT
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMP-LATCH	产品类别	Headers & Wire Housings
标准包装数量	Trays	工厂包装数量	30

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	00000000
无铅定义	Wave solder capable to 240Â°C, Wave solder capable to 260Â°C, Wave solder c	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

电气参数

量程（°/s）	:TE - AMP-LATCH Series	最大额定电流	1/Contact A
最小供电电压	250VAC

机械参数

颜色	Black	深度	8.53 mm
间距	2.54 mm	高度	13.94 mm
重量	0	包装方式	Bulk
遮蔽类型	Yes	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Male Pin
极化	Center, Dual Polarizing Bar, Military	第二连接器	Without
触点形状	Square	外壳颜色	Black
安装类型	Vertical	连接器类型	Universal Ejection Pin Headers
接触镀层	Gold Over Palladium Nickel\|Gold Over Nickel	安装样式	Through Hole
排数	2	封装形式	4-Sided
电路板厚度	3.18 [0.125]	外形（宽 x 高）	Standard
触头材料	Brass/Phos Bronze	壳体材料	Thermoplastic
总长度	100.58 mm	主要材料	InterconnectSystem
尺寸/外形	0.64 [.025]	端接样式	Through Hole
第一触头极性	Pin (Male)	配接方向	With
触点数	64	接触件端接	:Through Hole Vertical
位数	64	中心触点材料	2.54 x 2.54 [.100 x .100]
接触长度 - 配合	0.240" (6.10mm)	端子柱长度	3.94 [0.155]
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ejector Header	连接器性别	HDR
系列	AMP-LATCH	制造商全称	AMP-LATCH
产品子类型	Headers	其他规格	Without
加载位置数	All

环境参数

温度额定值

Standard

工作温度

-65C to 105C
