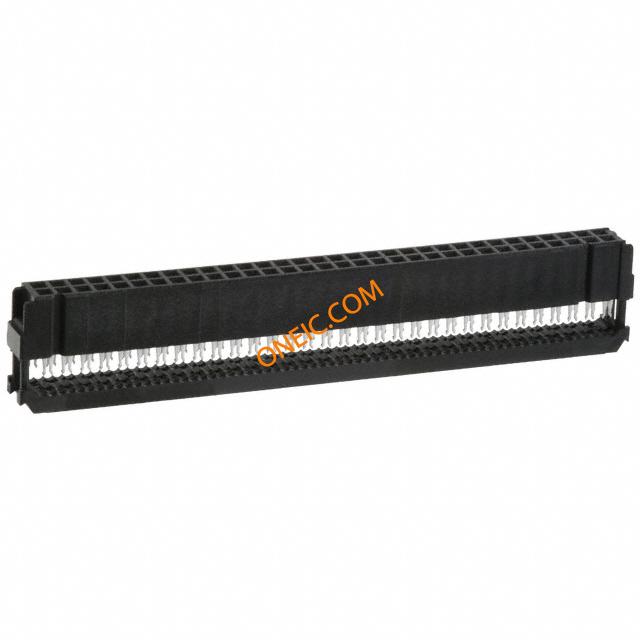

1-1658620-2

点击放大查看

1-1658620-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 64 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 64 POS 15AU Headers & Wire Housings 064 NOVO MIL 15DP FT Conn IDC Connector F 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 64ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM CONNECTOR,PLUG,NOVA,AMP-LATCH,64POS,WITHMATINGPOLARIZATION 064 NOVO MIL 15DP FT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量360

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series接触电阻15 mohm
最大额定电流1/Contact A最小供电电压250VAC

机械参数

颜色Black深度6.09 mm
间距2.54 mm高度15.97 mm
重量0.009包装方式Tube
导线类型Ribbon Cable出线方向Without
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel安装样式Cable
排数2触头材料Phosphor Bronze
壳体材料Thermoplastic总长度85.85 mm
安装特性Without主要材料InterconnectSystem
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数64接触件端接:IDC / IDT
位数64中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度15µin (0.38µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP-LATCH NOVO
产品特性Feed Through制造商全称AMP-LATCH
产品子类型Receptacles / Sockets - Housings连接类型Ribbon Cable
带调制解调器控制Yes

环境参数

工作温度-65C to 105C
