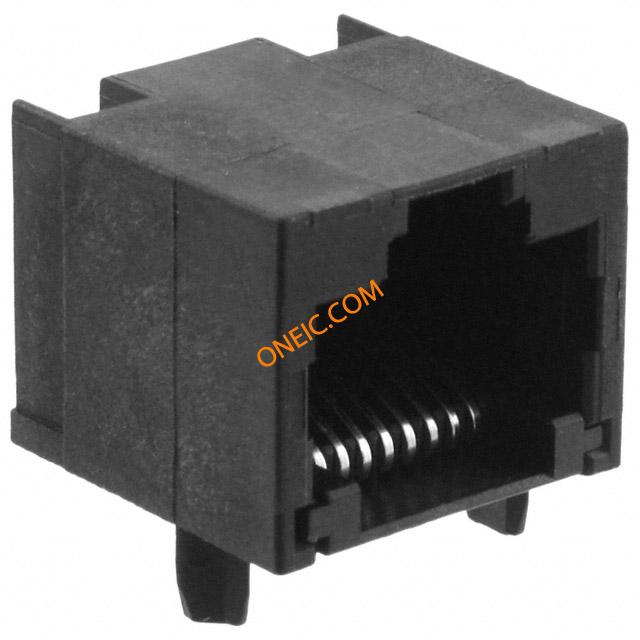

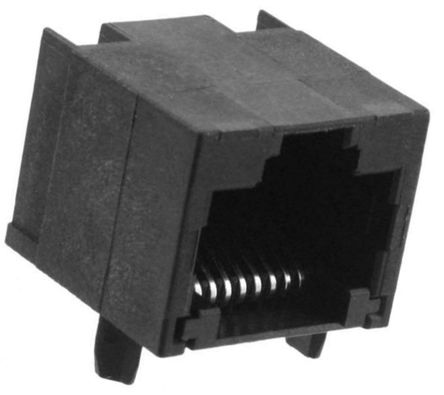

1-406525-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C Modular Connectors / Ethernet Connectors 1X1 8/8 INV UNSHLD Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO JACK, RJ45, PCB, 8WAY INVERTEDMODJACK,IMJ,NOSHLD,8P,TRAY,SN TE Connectivity 直角 母 RJ45 连接器 , Cat5, 屏蔽, 印刷电路板安装型 IMJ,NO SHLD,8P,TRAY, SN |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 608 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| LED | Without | 最大额定电流 | 1.5/Contact A |
| 最小输入电压 | 150VAC | 最小供电电压 | 150VAC |
| 连接器类型 - 电压输入 | :Cat5 | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.04 mm | 高度 | 12.83 mm |
| 重量 | 0.004 | LED颜色 | Does Not Contain LED |
| 包装方式 | Tray | 屏蔽 | Unshielded |
| 厚度 | 1.57 [0.062] | 方向 | 90° Angle (Right) |
| 屏蔽类型 | No | 端接方式 | Solder |
| 外壳颜色 | Black | 反向插孔 | Yes |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Up |
| 连接器类型 | RJ45 | 接触镀层 | Gold Over Nickel |
| 法兰特征 | No | 接地类型 | Without |
| 安装样式 | Thru Hole | 排数 | 1 |
| 高度（英寸） | 12.83 [0.505] | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 15.75 mm | 包装数量 | Tray |
| 面板安装类型 | With | 端接样式 | Solder |
| 触点数 | 8 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 8 | 电缆未暴露长度 | 2.54 [0.100] |
| 接触镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 备注 | Recommended applications: Fast Ethernet, 10Base-T Ethernet, and 10/100 Base-T E | 类型 | RJ-45 |
| 连接器性别 | F | 系列 | :406525 |
| 产品特性 | Board Guide | 端口样式 | Single |
| USOC 编码 | RJ45 | 编码、键控 | No |
| 产品子类型 | Jack | 类别编号 | Cat 5 |
| 端口数 | 1 | 插孔配置 | 1 x 1 |
| 射频系列/标准 | 406525 | 性能类别 | Cat 5 |
| 加载位置数 | 8 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5 | 工作温度 | -40C to 80C |
文档与媒体
