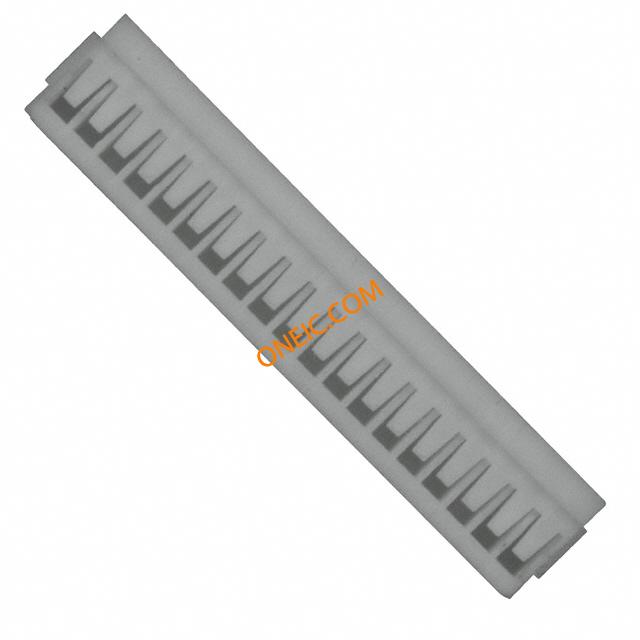

点击放大查看
1-353908-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 19 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 19POS 1.5MM CRIMP Conn Housing RCP 19 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 19Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CT REC HSG 19P CRIMP TYPE WHIT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189-133 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 50 VAC, 50 VDC | 输入电阻 | 500 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
机械参数
| 颜色 | White | 间距 | 1.5 mm |
| 形状 | 矩形 | 宽度 | .141 in, 3.6 mm |
| 高度 | 6 mm [ .236 in ] | 长度 | 30 mm [ 1.181 in ] |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 导线线规 | 24-28 AWG | 触头类型 | Female Socket |
| 第二连接器 | Without | 安装类型 | Straight |
| 连接器类型 | Crimp | 安装样式 | 不带 |
| 排数 | 1 | 壳体材料 | Nylon 66 |
| 总长度 | 1.50 [0.059] | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 端接样式 | 插座 |
| 触点数 | 19 | 接触件端接 | Crimp |
| 绝缘直径 | .85 – 1.05 mm [ .0334 – .041 in ] | 位数 | 19 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 可密封 | 否 |
| 产品子类型 | Receptacle Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
