点击放大查看

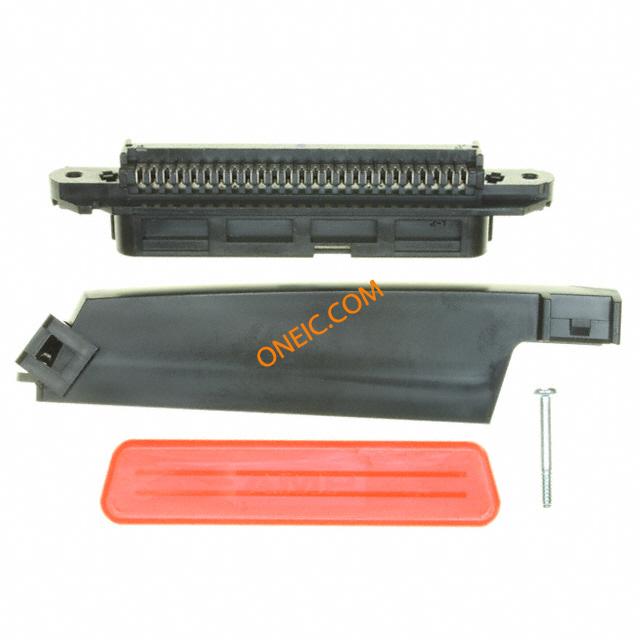

1-229913-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual 2.16 [.085] IDC Connectors KIT, RCPT, 50 POS, B SLOT I/O Connectors RECP W/DUST CVR 50P .350-.425 black |
| 分类 |
商业参数
| 交货时间 | 365 Days | 子类别 | Connector Interface |
| 产品类别 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 包装方式 | Individual | 电缆类型 | 7 Strand, Solid |
| 铜缆类型 | B | 屏蔽类型 | No |
| 端接方式 | IDC | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | PCB |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 外形（宽 x 高） | Standard | 包装数量 | Individual Kit |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 触点数 | 50 | 位数 | 50 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 0.51-0.40 [24-26] |
| 线规或范围 - mm² | 0.20² [24] | 电缆外径（最小） | 8.89 â 10.80 [0.350 â 0.425] |
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 产品特性 | Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware | 产品子类型 | Connector Kit |
| 适用产品/相关产品 | 1-5229913-1 | ||
环境参数
| 保护功能 | With | ||
