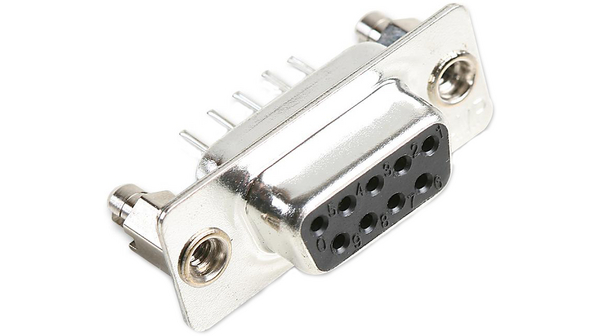

点击放大查看
1-1634222-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.77mm Solder ST Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors 9P RECEPT VERT 15 AU Standard Board Mount Connectors CONN D-SUB RCPT 9POS VERT GOLD 9 way D-socket plus lock & insert Conn D-Subminiature SKT 9 POS 2.77mm Solder ST Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub CONNECTOR, D-SUB, RECEPTACLE, THT, 9WAY 9wayD-socketpluslock&insert Socket; D-Sub; HD 20; PIN:9; female; straight; THT; UNC4-40 D-sub socket 9P, 1-1634222-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 2.77mm 节距 9 路 直向 通孔安装 PCB D-sub 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - TDE Series |
| 额定电压 | 250V | 工作电压 | :250VDC |
| 介电强度 | :500V | 最大额定电流 | 3A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 250VDC |
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 间距 | 2.77 mm | 宽度 | 12.7mm |
| 高度 | 12.7 mm | 长度 | 30.8mm |
| 密封型 | No | 重量 | 0.018 |
| 材料（通用） | :Steel | 包装方式 | Tray |
| 外壳尺寸 | 1 | 方向 | straight |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 壳体镀层 | :Gold | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.063 [1.60] | 连接器样式 | D-Sub |
| 锁定特性 | Threaded Insert, 4-40 UNC | 本体材料 | :Metal |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 30.8 mm | 包装数量 | 1 |
| 面板安装类型 | Without | 尺寸/外形 | 30.8 x 12.7 x 12.55mm |
| 连接器 - 电缆 | socket | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 9 | 接触件端接 | :Solder |
| 位数 | 9 | 镀层厚度（通用） | 0.38µm |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Nickel Plated |
| 螺纹/螺钉/孔尺寸 | UNC4-40 | 端子柱长度 | 4.70 [0.185] |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | gold plated |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| SPG | 1 | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 适配器系列 | HD 20 | 端口数 | 1 Port |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
