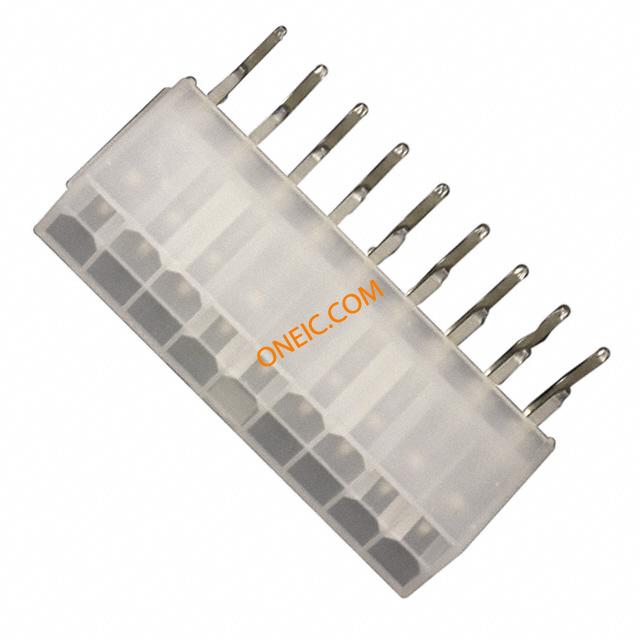

1-1586041-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 18 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 18POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 18P HEADER,RIGHTANGLE,VAL-U-LOK,18POS,DUALROW,UL94V-2,W/OPEGS 18P VAL-U-LOK R/A HDR V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Wave solder capable to 240°C |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 中心频率 | 带有 | 最大额定电流 | 9 A |
机械参数
| 间距 | 4.2 mm | 宽度 | 13 mm [ .51 in ] |
| 高度 | 9.8 mm [ .386 in ] | 长度 | 39 mm [ 1.5354 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 18 | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Brass |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 主要材料 | InterconnectSystem |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 18 | 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] |
| 位数 | 18 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 直插式, 矩阵 |
| 端子柱长度 | 3.6 mm [ .14 in ] | 接触镀层厚度 | 80 µm [ 2.03 µin ] |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | PE | 制造商全称 | VAL-U-LOK |
| 产品子类型 | Pin Header | 电路数 | 18 |
| 选择性装载 | No | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | .063 mm [ 1.6 in ] | ||
文档与媒体
相关型号
1-1586019-8
te connectivity / amp
Conn Housing RCP 18 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RCPT HOUSING 18POS 4.2MM Pin & Socket Connectors HSG REC 2X09C F/P V0 Conn Housing RCP 18 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 18UL 94V-0Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE,HOUSING,VAL-U-LOK,18POS,DUALROW,UL94V-0 VAL-U-LOK Series 18 Position Female Latch Lock Free Hanging Receptacle Housing 18P RCPT VAL-U-LOK V0
1-794657-8
te connectivity / amp
Conn Housing RCP 18 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT 18POS .165 NATURAL Pin & Socket Connectors 18P RCPT HSG 94V-0 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions18 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 18P RCPT HSG 94V-0
1-106527-8
te connectivity / amp
Conn Housing RCP 18 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 18POS W/POSTIVE LOCK Pin & Socket Connectors 18P RECPT W/POS LOCK Conn Housing RCP 18 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions18 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 18P DUAC REC HSG

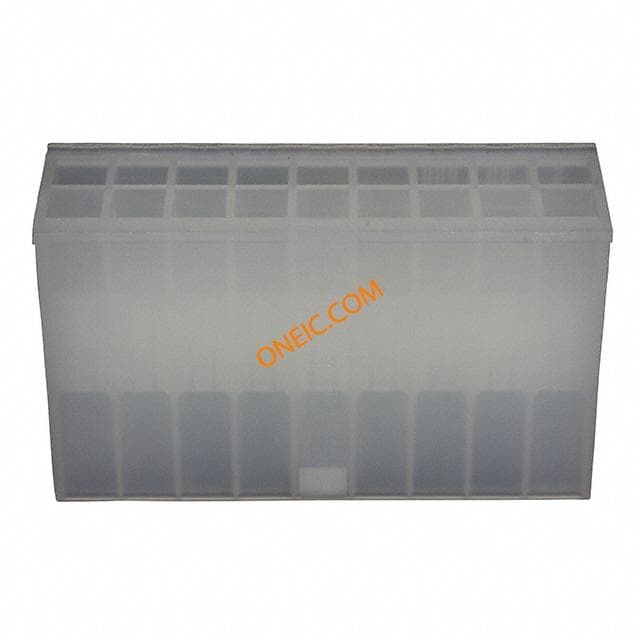

1-1586000-8
