点击放大查看

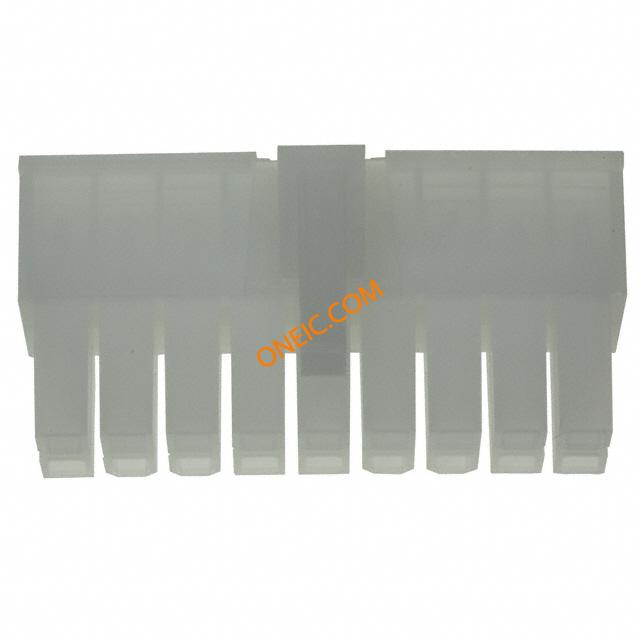

1-106527-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 18 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 18POS W/POSTIVE LOCK Pin & Socket Connectors 18P RECPT W/POS LOCK Conn Housing RCP 18 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions18 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 18P DUAC REC HSG
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Pin & Socket Connectors	标准包装数量	Bulk
工厂包装数量	2000

合规参数

RoHS	Lead free / RoHS Compliant	零件状态	E28476
标准编号	CSA, UL	UL阻燃等级	UL 94V-2
认证机构标志	是

电气参数

额定电压	600 V	供电电压	600
中心频率	带有	最大额定电流	9 A
最小供电电压	600VAC

机械参数

颜色	Natural	深度	18.8 mm
间距	4.2 mm	宽度	11.7 mm [ .46 in ]
高度	18.8 mm [ .74 in ]	长度	39.1 mm [ 1.54 in ]
密封型	Not Sealed	包装方式	Bulk
导线线规	18-26 AWG	排间距	0.165" (4.20mm)
触头类型	Female Socket	外壳颜色	Natural
安装类型	Straight	连接器类型	Receptacle
接触镀层	Without	紧固类型	Latch Lock
排数	2	封装形式	Receptacle
插入力	4	壳体材料	Nylon
总长度	39.1 mm	包装数量	1
端接样式	插座	触点数	18
接触件端接	Crimp	位数	18

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品子类型	Receptacle Housings

环境参数

测试温度

标准件 - 非灼热丝

工作温度

-55C to 105C

文档与媒体

在线文档

1-106527-8?RQPN=1-106527-8

相关型号

1-794357-1

te connectivity / amp

Conn Wire to Board HDR 18 POS 4.2mm Solder ST Thru-Hole Pin & Socket Connectors OBSOLETE 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 18POS VERT PCB TIN

详情

1-1586495-8

te connectivity / amp

Conn Power HDR 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 18POS VERT PCB TIN Pin & Socket Connectors 18P DUAC 94V0 W0/PEG WO/DH LF Conn Power HDR 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port Product Highlights:ConnectorAMP-DUAC/PLHeaderConnector Style = PlugContact Type = PinSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 18P DUAC 94V0 W0/PEG WO/DH LF

¥6.0520

详情

1-794550-8

te connectivity / amp

Conn Housing PL 18 POS 4.2mm Crimp ST Pin & Socket Connectors 18P PLUG 94V-2 PN MT DUAC 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PLUG HOUSING 18POS PNL MNT 18P DUAC PLUG HSG 94V-2 PAN MT 18P DUAC PLUG HSG 94V-2 PAN MT Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥2.3630

详情

1-794454-1

TE Connectivity

Pin & Socket Connectors 18P DUAC HDR ASSY W/DH 94V-O LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 18POS VERT PCB TIN

¥6.2016

详情

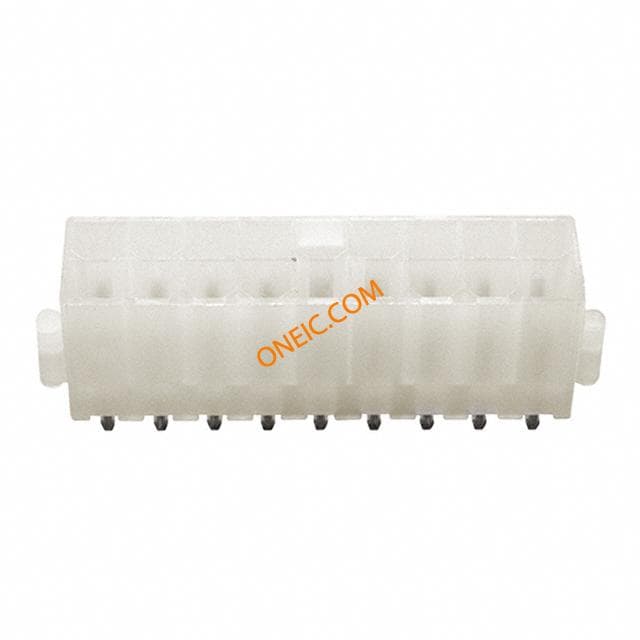

1-1586039-8

te connectivity / amp

Conn Power HDR 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 18POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 18P Conn Power HDR 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 18UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,18POS,DUALROW,UL94V-2,W/PEGS 18P VAL-U-LOK VRT HDR W/P V2

¥2.1366

详情

1-794310-1

te connectivity / amp

Conn Power HDR 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 18POS VERT PCB TIN Pin & Socket Connectors 18P DUAC PWR CONN ASSY VRT LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HeaderAMP-DUAC0 Power Positions18 Signal PositionsPCB Mount Angle = VerticalSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥5.6440

详情

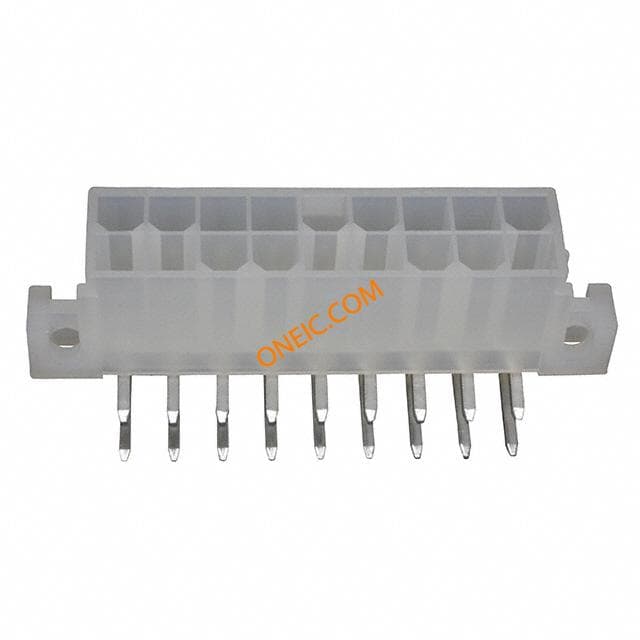

1-1586043-8

te connectivity / amp

Conn Power HDR 18 POS 4.2mm Solder RA Thru-Hole 18 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 18POS R/A W/FLANGE Pin & Socket Connectors RA HDR SCREW MNT 18P Conn Power HDR 18 POS 4.2mm Solder RA Thru-Hole 18 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,18POS,DUALROW,UL94V-2,SCREWMOUNT 18P VAL-U-LOK R/A HDR SCRMT V2

¥3.7400

详情

暂无图片

794514-1

te connectivity / amp

Conn Power HDR 18 POS 4.2mm Solder RA Thru-Hole 18 Terminal 1 Port CONN HEADER R/A 18POS TIN PCB

详情

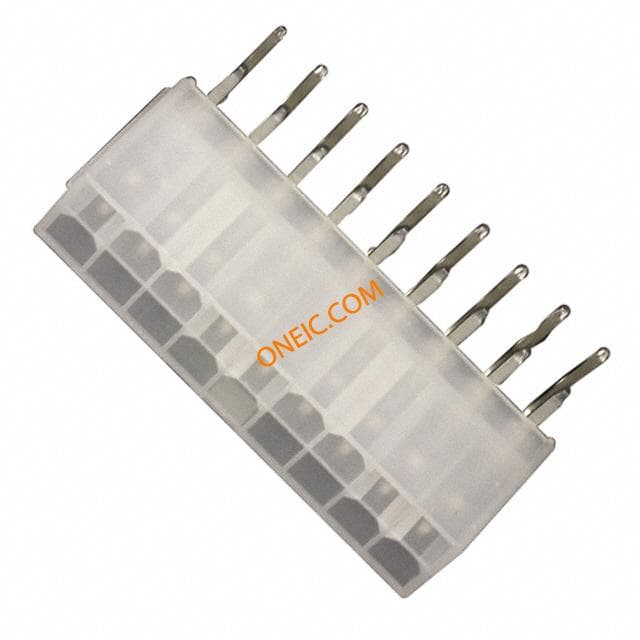

1-1586041-8
