点击放大查看

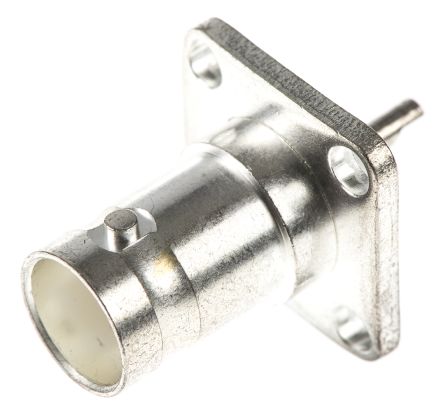

1-1337446-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 2GHz 75Ohm Solder Cup ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER AgPt BNC panel mount solder socket,50ohm RF Connectors / Coaxial Connectors BNC PNL SKT 50OHM SILVER PLTD Conn BNC RCP 0Hz to 2GHz 75Ohm Solder Cup ST Panel Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackBody Style = PanelNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PANEL, 50R AgPtBNCpanelmountsoldersocket,50ohm Socket; BNC; female; straight; 50Ω; soldering; teflon TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC Pnl Skt 50Ohm Silver Pltd |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 电压 | :500V | 频率 | 0 to 2 GHz |
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 2GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.0012 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Silver | 方向 | straight |
| 端接方式 | Solder Cup | 基体材料 | Brass |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | PanelMount |
| 壳体镀层 | :Silver | 连接器样式 | BNC |
| 触头材料 | Brass | 包装数量 | 1 |
| 主要材料 | BNC | 连接器 - 电缆 | socket |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 材质 | teflon | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Brass | 供应商器件封装 | :Straight Flanged Jack |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 1 | 类型 | BNC |
| 连接器性别 | RCP | 产品特性 | Extended Insulation |
| 连接类型 | Wire | 单元数量 | 1 |
| 射频系列/标准 | 1337446 | ||
环境参数
| 插拔次数 | :500 | 工作温度 | -65°C ~ 165°C |
