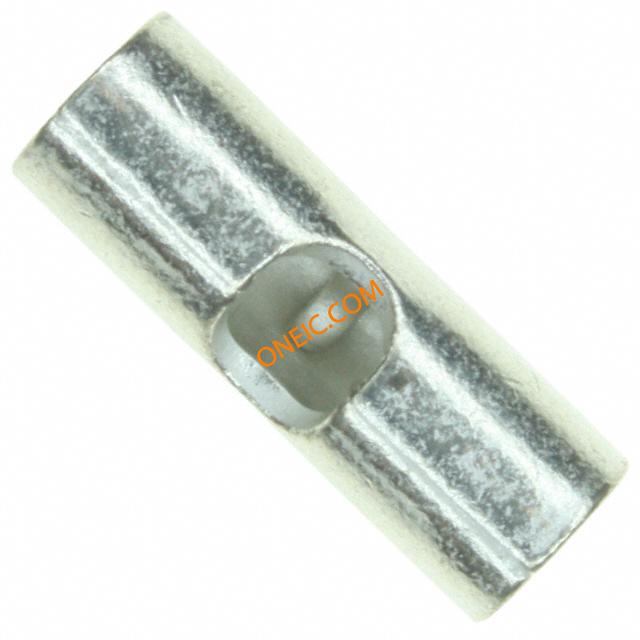

点击放大查看
36906
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 8AWG 21.01mm 7.52mm Tin Loose Piece Terminals SPLICE SOLIS BUTT 8 CONN SPLICE BUTT 8 AWG SOLIS Sight hole butt splice,SOLISTRAND, 8 AWG Splice Terminal 8AWG 21.01mm 7.52mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = Sight HoleBody Style = SOLISTRANDSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, CRIMP TERMINAL, BUTT, 8AWG, PK50 Sightholebuttsplice,SOLISTRAND,8AWG TE Connectivity SOLISTRAND 系列 平接 非绝缘压接接线端子, 镀锡触点, 8 AWG SPLICE,SOLIS BUTT 8 |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
机械参数
| 颜色 | Not Required | 深度 | 7.52 mm |
| 重量 | 0.2 | 材料（通用） | :Copper |
| 包装方式 | Bulk | 绝缘类型 | Not Insulated |
| 导线线规 | 8 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 螺柱/焊片尺寸 | # 6 |
| 端子类型 | Butt Splice, Inline, Individual Openings | 连接器类型 | :Splice |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 触头材料 | Copper | 绝缘颜色 | :(Not Available) |
| 总长度 | 21.01mm | 主要材料 | Splice |
| 连接器颜色 | :Tin | 绝缘材料 - 材质 | :(Not Available) |
| 进线口数 | 2 | 线规或范围 - AWG | :10AWG |
| 线规或范围 - mm² | :10.5mm² | 外径-未扩张 | :10.5mm |
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | 369 | 产品特性 | Brazed Seam |
| CAD图纸 | 3D CAD Model | 制造商全称 | SOLISTRAND |
环境参数
| 工作温度 | :170°C | ||
文档与媒体
