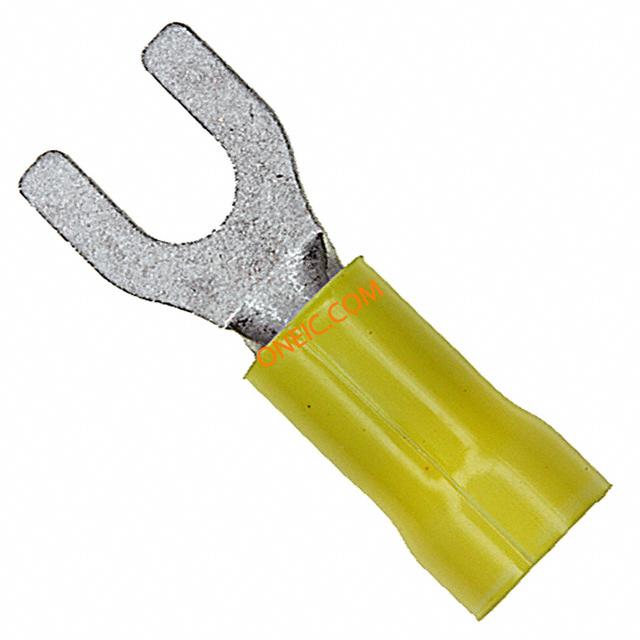

| 制造商 | TE Connectivity Ltd. |
| 描述 | Spade Tongue Terminal 10-12AWG 27.81mm 10.31mm Tin Loose Piece Terminals SPADE 12-10AWG 10 CONN SPADE 10-12 AWG #10 P-GRIP Spade terminal, PLASTI-GRIP, yellow, M5 Spade Tongue Terminal 10-12AWG 27.81mm 10.31mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, SPADE, PLASTI-GRIP TERMINAL,PGSPD12-1010 TE Connectivity PLASTI-GRIP 系列 黄色 绝缘 压接铲形连接器 , M5 螺栓 TERMINAL,PG SPD 12-10 10 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 其他名称 | A0981 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 VAC | ||
机械参数
| 颜色 | Yellow | 宽度 | 10.31mm |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 螺钉尺寸 | 10 | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4.82 mm | 端子类型 | Standard |
| 行程角度 | Straight | 连接器类型 | :Spade |
| 接触镀层 | Tin | 总宽度 | 0.406" |
| 触头材料 | Copper | 绝缘颜色 | :Yellow |
| 总长度 | 1.095" (27.81mm) | 包装数量 | 500 |
| 主要材料 | Fork | 连接器颜色 | Yellow |
| 绝缘直径 | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.406" (10.31mm) | 端接长度 | 0.591" (15.01mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 0.197" (5.00mm) |
| 线规或范围 - AWG | :12AWG | 线规或范围 - mm² | :6.64mm² |
| 环中心到端接长度 | 0.296" (7.52mm) | ||
产品信息
| 类型 | Spade Tongue Terminal | 连接器性别 | Female |
| 系列 | 176 | 产品特性 | Serrated Termination |
| CAD图纸 | 3D CAD Model | 制造商全称 | PLASTI-GRIP |
