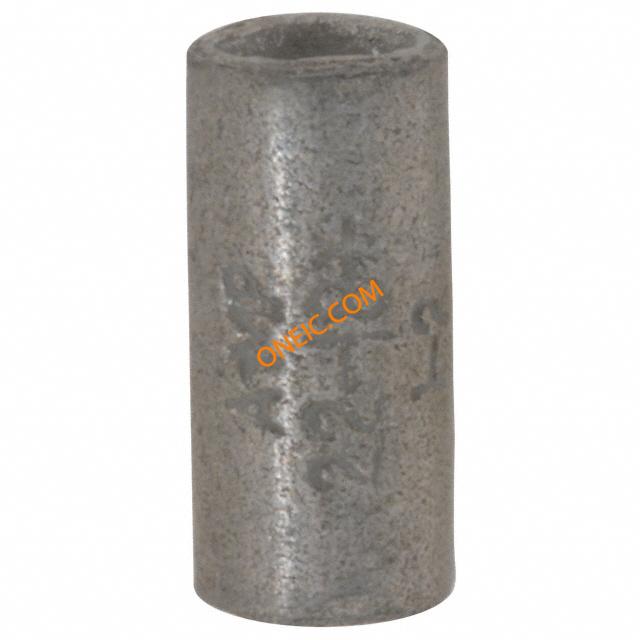

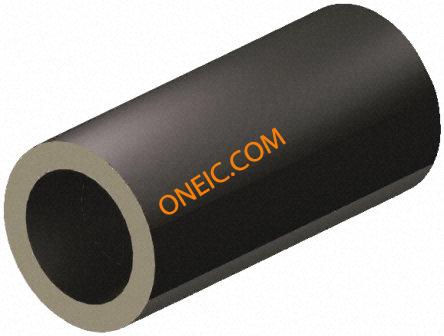

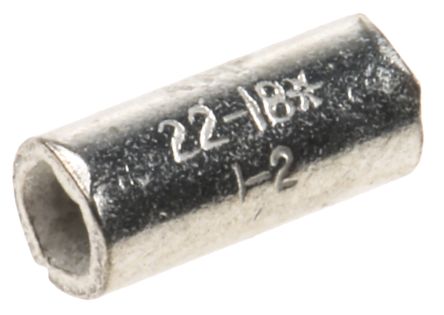

34130
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 16-22AWG 7.65mm 3.58mm Tin Loose Piece Terminals SPLICE 22-16 AWG Splices - Closed Barrel CONN SPLICE PARA 16-22 AWG SOLIS Parallel splice, solistrand, 22-16 AWG Splice Terminal 16-22AWG 7.65mm 3.58mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ParallelBody Style = SOLISTRANDUninsulatedSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, CRIMP TERMINAL, SPLICE, 22-16AWG TERMINAL, PARALLEL SPLICE #10 CRIMP BLUE SPLICE,SOLISPARA22-16 Closed end splice; non-insulated; brass; 0.3÷1.42mm2; tinned Butt splice connector 0.25...1.6 mm², 34130, TE Connectivity TE Connectivity 并联 非绝缘压接接线端子, 镀锡触点, 22 → 16 AWG SPLICE,SOLIS PARA 22-16 |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :BS, CAA, CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| SCR类型 | Parallel | 驱动类型 | closed end splice |
| 额定电压 | 300 VAC | ||
机械参数
| 颜色 | None | 深度 | 3.58 mm |
| 表面处理 | Tin | 密封型 | No |
| 重量 | 0.044 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.84 [0.033] |
| 绝缘类型 | Not Insulated | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | crimped | 螺柱/焊片尺寸 | :1.55mm |
| 端子类型 | Inline, Individual Openings (Parallel) | 行程角度 | Straight |
| 连接器类型 | :Splice | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 触头材料 | Copper | 套圈材料 | non-insulated |
| 绝缘颜色 | :(Not Available) | 总长度 | 7.65mm |
| 包装数量 | Loose Piece | 主要材料 | Splice |
| 内径（直径） | 1.55 [0.061] | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | :Tin |
| 外径 | 3.58 [0.141] | 绝缘材料 - 材质 | :Uninsulated |
| 进线口数 | 2 | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :1.6mm | ||
产品信息
| SPG | 1 | 类型 | Splice Terminal |
| 连接器性别 | Female | 系列 | 130 |
| 产品特性 | Brazed Seam, Serrated Mating Area | 制造商全称 | AMP |
| 产品子类型 | Splice | 单元数量 | 1 |
环境参数
| 工作温度 | :170°C | ||
文档与媒体
相关型号
34130
