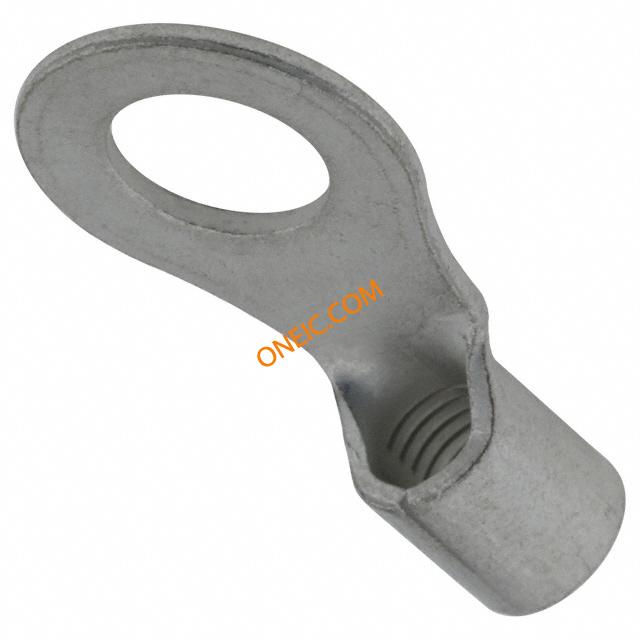

点击放大查看
33462
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #5/16 SOLIS Ring terminal, SOLISTRAND, M8, 8 AWG Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, M8, PK50 Terminal,RingTongue,8AWG,StudSz5/16 Ring terminal; M8; 8mm2; crimped; for cable; non-insulated; tinned Ring cable lug, blank 8.3 mm 6.7...10.5 mm², 33462, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M8 螺栓 TERMINAL,SOLIS R 8 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :BS, CAA, CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | 驱动类型 | ring terminal |
机械参数
| 颜色 | Not Required | 深度 | 15.09 mm |
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | 0.18 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.22 [0.048] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 8 AWG |
| 本体表面处理 | SOLISTRAND | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 8 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 线束直径 | 4.37 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 套圈材料 | non-insulated |
| 绝缘颜色 | :(Not Available) | 总长度 | 1.168" (29.67mm) |
| 刀片材料 | Copper | 包装数量 | Loose Piece |
| 主要材料 | Ring | 内径（直径） | 8.3mm |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 连接器颜色 | :Tin | 外缘宽度 | 0.594" (15.09mm) |
| 绝缘材料 - 材质 | :Uninsulated | 安装孔直径 | M8 |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 13,100 â 20,800 |
| 线规或范围 - mm² | 8.00² [8] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :4.2mm | ||
产品信息
| SPG | 1 | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 346 |
| 产品特性 | Brazed Seam, Serrated Termination | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 单元数量 | 1 |
环境参数
| 工作温度 | :170°C | ||
