点击放大查看

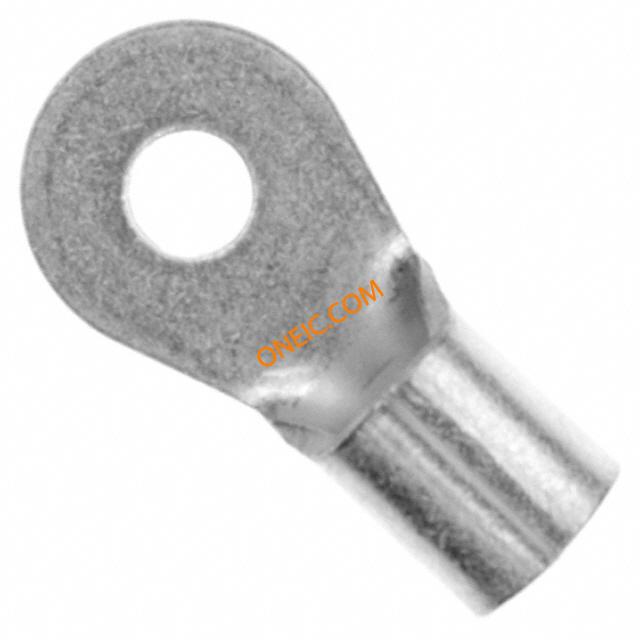

32996
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Terminals TERMINAL SOLIS R 8 8 Ring and Spade Tongue Terminals CONN RING 8 AWG #8 SOLIS Ring terminal, SOLISTRAND, M4, 8 AWG Ring terminal Solistrand 8AWG 8 Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL CONNECTOR RING TONGUE TERMINAL,RINGROUNGE,SOLISTRAND,8,8,STRAIGHT,CLOSEDBARREL TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M4 (#8) 螺栓, 4.34mm内环直径, 23.7mm总长 TERMINAL,SOLIS R 8 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-049 | 表面处理 | Tin |
| 重量 | 0.318 | 材料（通用） | Copper |
| 包装方式 | Bulk | 遮蔽类型 | Unshrouded |
| 厚度 | 1.22 [0.048] | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 导线线规 | 8 AWG | 本体表面处理 | SOLISTRAND |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.16 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 线束直径 | 4.37 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :- |
| 总长度 | 0.933" (23.70mm) | 包装数量 | Loose Piece |
| 主要材料 | Ring | 内径（直径） | 4.34mm |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外径 | 11.91mm | 外缘宽度 | 0.469" (11.91mm) |
| 绝缘材料 - 材质 | :Uninsulated | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 13,100 â 20,800 | 线规或范围 - mm² | 8.00² [8] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 329 | 产品特性 | Brazed Seam, Serrated Termination |
| 制造商全称 | AMP | ||
