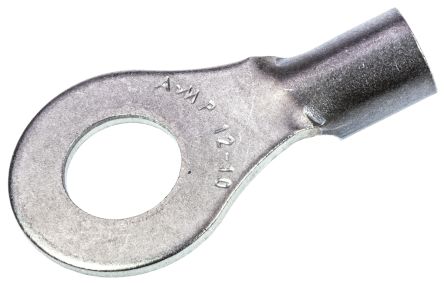

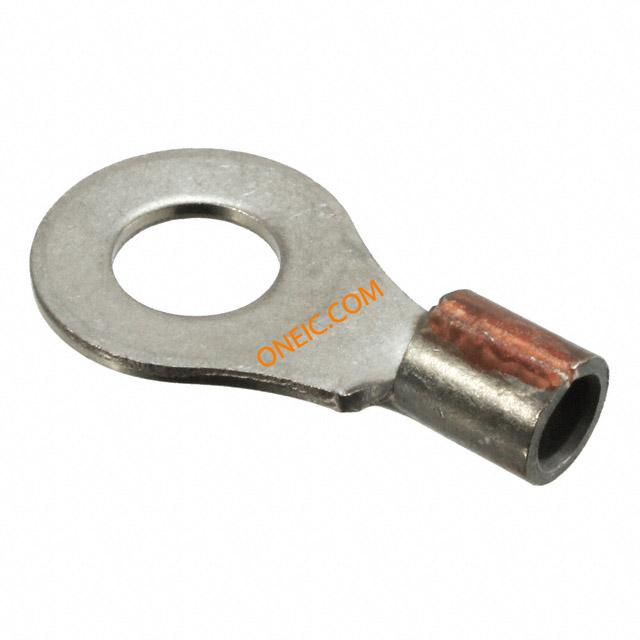

323683
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 25.5mm 13.49mm Loose Piece Terminals Ring HT 12-10 AWG Ring HT 12-10 AWG CONN RING HT 12-10AWG #1/4 SOLIS Ring terminal, STRATO-THERM, 649°C, M6 Ring Tongue Terminal 10-12AWG 25.5mm 13.49mm Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRAND, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 2.7-6.6XM6 Ringterminal,STRATO-THERM,649°C,M6 TE Connectivity STRATO-THERM 系列 非绝缘 环形压接端子 , M6 螺栓, 6.35mm内环直径, 25.5mm总长 TERMINAL,SOLIS R HT 12-10 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Orange | 重量 | 0.002 |
| 材料（通用） | Nickel | 包装方式 | Bulk |
| 厚度 | 0.039" (0.99mm) | 绝缘类型 | Not Insulated |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 6 mm |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Unplated | 触头材料 | Nickel |
| 绝缘颜色 | :(Not Available) | 总长度 | 1.004" (25.50mm) |
| 连接器颜色 | :Nickel | 外缘宽度 | 0.531" (13.49mm) |
| 绝缘材料 - 材质 | :Uninsulated | 线规或范围 - AWG | :12AWG |
| 线规或范围 - mm² | :6.6mm² | 外径-未扩张 | :3.3mm |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :STRATOTHERM |
| 产品特性 | Brazed Seam, High Temperature, Serrated Termination | ||
环境参数
| 工作温度 | :650°C | ||
