点击放大查看

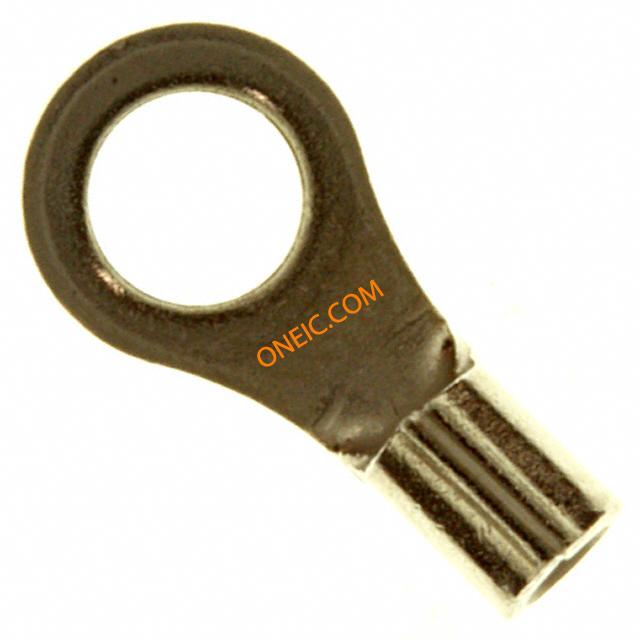

322798
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 14.58mm 7.14mm Nickel Loose Piece Terminals SOLIS 8 RING 22-18G Ring and Spade Tongue Terminals CONN RING 16-22 AWG #8 SOLIS Ring terminal, STRATO-THERM, 343°C, M4 Ring Tongue Terminal 16-22AWG 14.58mm 7.14mm Nickel Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRAND, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 0.25-1.6XM4 SOLISSTRATO-THERMTM,SOLISRHR22-16COM22-18MIL8 Ring terminal; M4; 0.3÷1.42mm2; crimped; for cable; non-insulated Solistrand?Series 22-16 AWG 8 Stud Non-insulated Ring Tongue Crimp Terminal Ring Terminal 14.58 mm metallic, 0.3...1 mm², 22...18 AWG, SOLIS, 322798, TE Connectivity TE Connectivity STRATO-THERM 系列 非绝缘 镀镍触芯 环形压接端子 , M4 螺栓, 4.34mm内环直径, 14.58mm总长 SOLIS R HR 22-16COM 22-18MIL 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 驱动类型 | ring terminal | ||
机械参数
| 颜色 | Not Required | 深度 | 7.14 mm |
| 形状 | RING-084 | 表面处理 | Nickel |
| 重量 | 0.05 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4.17 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Nickel |
| 安装样式 | for cable | 壳体镀层 | Nickel |
| 连接器样式 | Straight | 触头材料 | Copper |
| 套圈材料 | non-insulated | 绝缘颜色 | :(Not Available) |
| 总长度 | 0.574" (14.58mm) | 包装数量 | Loose Piece |
| 内径（直径） | 4.34mm | 绝缘高度 | Non-Insulation Support |
| 连接器颜色 | :Nickel | 接触件尾部长度 | 0.84 [0.033] |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | :(Not Available) |
| 安装孔直径 | M4 | 供应商器件封装 | SOLISTRAND, STRATO-THERM |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 触点材料 - 镀层 | nickel plated | 外径-未扩张 | :1.6mm |
产品信息
| SPG | 1 | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 322 |
| 产品特性 | Brazed Seam, High Temperature, Serrated Termination | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 单元数量 | 1 |
环境参数
| 温度额定值 | 343 [650] | 工作温度 | :340°C |
文档与媒体
相关型号
321895
TE Connectivity AMP Connectors
Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Loose Piece Terminals N/I-RING 22-16 #8 M4+ Ring and Spade Tongue Terminals CONN RING 16-22AWG #8 HT SOLIS Ring terminal, STRATO-THERM, 649°C, M4 Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRAND, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 0.25-1.6XM4 Ringterminal,STRATO-THERM,649°C,M4 TE Connectivity STRATO-THERM 系列 环形压接端子 , M4 螺栓, 4.34mm内环直径, 15.77mm总长 SOLIS R HT 22-16COMM22-18MIL 8
1-49935-0
te connectivity / amp
DA BAT TL HD 22-10 SOLIS Hand Tools DA BAT TL HD 22-10 SOLIS TOOL HEAD CRIMP 22-10AWG SOLIS

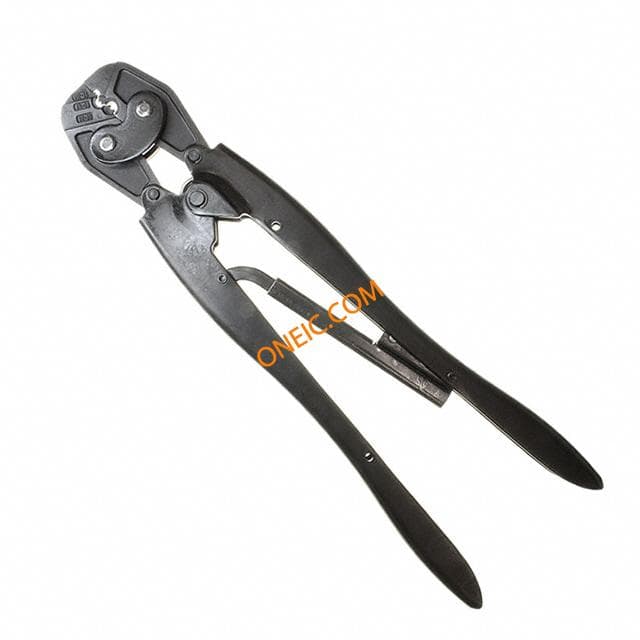

49935
