321895
| 制造商 | TE Connectivity Ltd. |

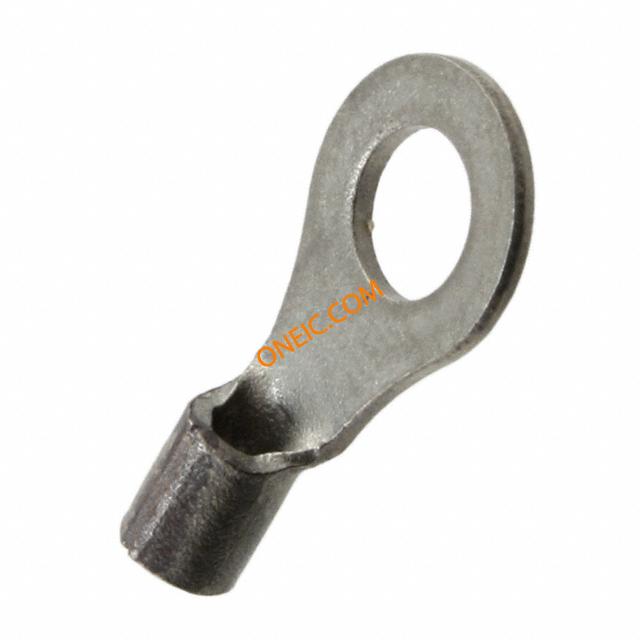

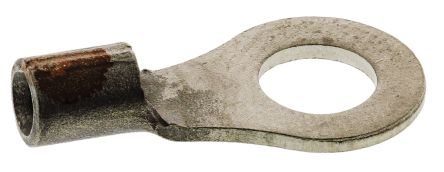

| 描述 | Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Loose Piece Terminals N/I-RING 22-16 #8 M4+ Ring and Spade Tongue Terminals CONN RING 16-22AWG #8 HT SOLIS Ring terminal, STRATO-THERM, 649°C, M4 Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRAND, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 0.25-1.6XM4 Ringterminal,STRATO-THERM,649°C,M4 TE Connectivity STRATO-THERM 系列 环形压接端子 , M4 螺栓, 4.34mm内环直径, 15.77mm总长 SOLIS R HT 22-16COMM22-18MIL 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 颜色 | Orange | 形状 | RING-054 |
| 表面处理 | None | 重量 | 0.054 |
| 材料（通用） | Nickel | 包装方式 | Bulk |
| 厚度 | 0.030" (0.76mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Unplated |
| 连接器样式 | Straight | 触头材料 | Nickel |
| 绝缘颜色 | :(Not Available) | 总长度 | 0.621" (15.77mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Non-Insulation Support |
| 连接器颜色 | Orange | 接触件尾部长度 | 0.84 [0.033] |
| 外缘宽度 | 0.312" (7.92mm) | 绝缘材料 - 材质 | :(Not Available) |
| 供应商器件封装 | SOLISTRAND, STRATO-THERM | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | 外径-未扩张 | :1.6mm |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :STRATOTHERM |
| 产品特性 | Brazed Seam, High Temperature, Serrated Termination | 制造商全称 | AMP |
环境参数
| 温度额定值 | 649 [1200] | 工作温度 | :650°C |
