点击放大查看

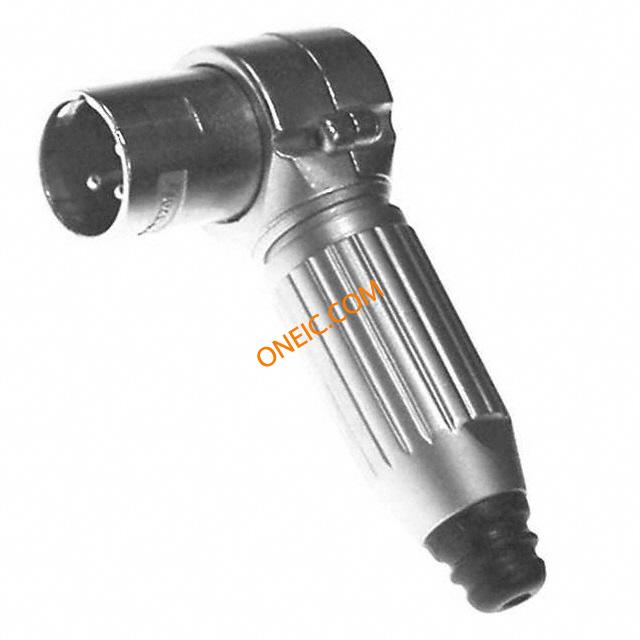

R3MZ

制造商	Switchcraft, Inc.
描述	XLR Connectors 3P M R/A W/STRN RLF Conn XLR Connector M 3 POS RA Cable Mount 3 Terminal 1 Port CONN RCPT AUDIO 3POS R/A MALE XLR Plug; Plug; 3; 2.75 in.; 0.96 in. XLRPlug;Plug;3;2.75in.;0.96in.
分类	连接器解决方案圆形连接器工业圆形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	XLR Connectors	标准包装数量	1
工厂包装数量	50

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	125VAC	供电电压	Standard XLR
最大额定电流	15A

机械参数

深度	27.5	包装方式	Bulk
方向	Keyed	端接方式	Solder
安装类型	Cable Mount	外壳镀层	Nickel
连接器类型	Receptacle, Male Pins	接触镀层	Silver
紧固类型	Latch Holder	安装样式	Cable
触头材料	Copper Alloy	总长度	40.25
触点数	3	位数	3
外壳尺寸-插件	XLR	外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

类型	XLR Connector	连接器性别	M
系列	R	产品特性	Strain Relief
产品子类型	Connectors	端口数	1

文档与媒体

PDF 文档

RxMxZ Drawing

PDF 文档

R_MZ_SERIES_CD.pdf

在线文档

Category.aspx?Parent=642
