点击放大查看

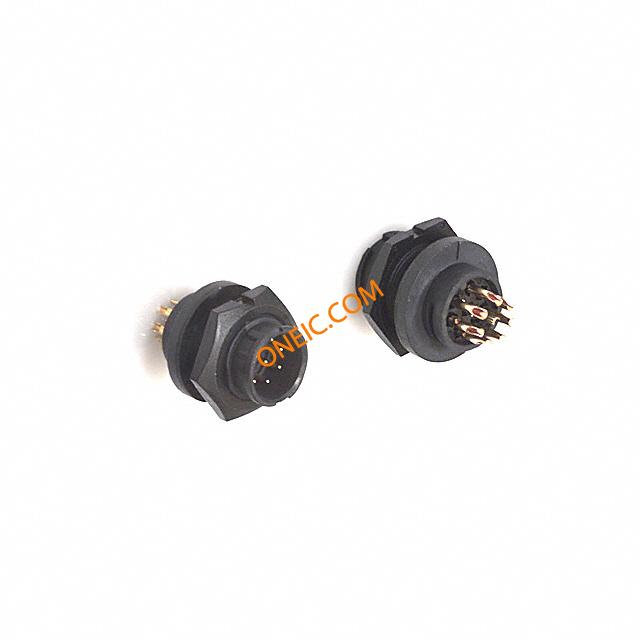

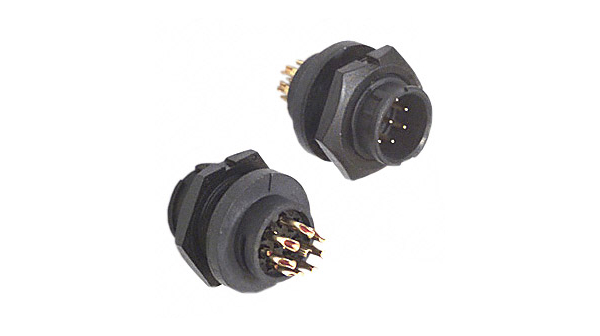

EN3P8M
| 制造商 | |
| 描述 | Conn Mini Weathertight M 8 POS Solder Cup ST Panel Mount 8 Terminal 1 Port Bulk CONN RCPT 8POS MALE PANEL #20 8 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts EN3,Panelmount8pinmale Device connector EN3, 8-pin 8, EN3P8M, Switchcraft Switchcraft 8路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | SC1173 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | 欧盟RoHS | Not Compliant |
电气参数
| 额定电压 | 600 Vac | 极数 | 8 |
| 最大额定电流 | 6.5A | 额定电流 - 设备输入口 | 6.5 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 重量（g） | 6.80000 | 触头类型 | 8Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 锁定特性 | Bayonet lock | 触头材料 | Copper Alloy |
| 壳体材料 | Plastic | 总长度 | 25.77 |
| 端接排数 | 焊接 | 端接样式 | Soldering Connection |
| 第一触头极性 | M | 触点数 | 8 |
| 位数 | 8 | 第一连接器极性 | Male |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Mini Weathertight | 系列 | EN3 |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40...+65 °C |
