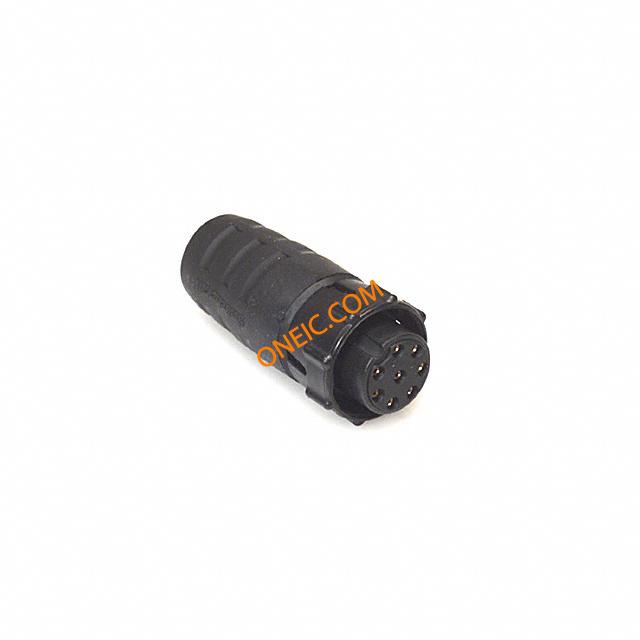

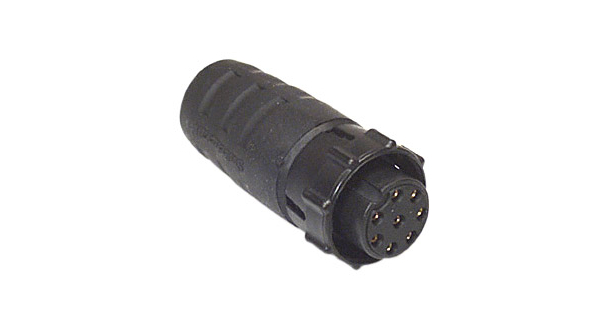

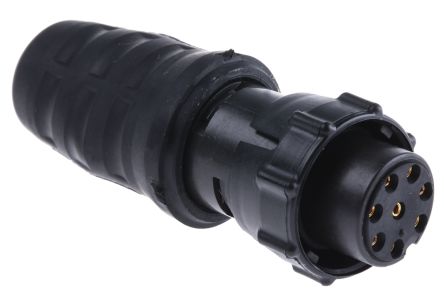

EN3C8F
| 制造商 | |
| 描述 | Conn Mini Weathertight F 8 POS Solder Cup ST Cable Mount 8 Terminal 1 Port Bulk CONN PLUG 8POS FEMALE CORD #20 8 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, FREE, 8WAY FEMALEPLUGEN3/8CTS Cable socket EN3, 8-pin 8, EN3C8F, Switchcraft Switchcraft 8路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1164 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Not Compliant | 海关税号 | 85366990 |
| 认证机构 | :UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 Vac | 接触电阻 | :3.1mohm |
| 介电强度 | :600V/m | 最大额定电流 | 6.5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.005 | 直径 | 17.86 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 重量（g） | 1.20000 | 触头类型 | 8Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 插入角度 | :- | 本体材料 | :Thermoplastic Rubber |
| 触头材料 | Copper Alloy | 总长度 | 39.83 |
| 第一触头极性 | F | 触点数 | 8 |
| 接触件端接 | :Solder | 位数 | 8 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :7mm |
产品信息
| 类型 | Mini Weathertight | 连接器性别 | :Receptacle |
| 系列 | :EN3 | 产品特性 | Cable Clamp |
| 适用产品/相关产品 | EN3C8FK | ||
环境参数
| 插拔次数 | :600 | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | :65°C |
