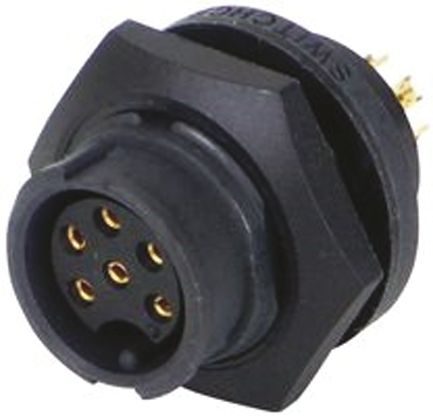

EN3P12F26SX
| 制造商 | |
| 描述 | Standard Circular Connector 12P FEMALE PANEL Conn Weathertight F 12 POS Solder Cup ST Panel Mount 12 Terminal 1 Port Bulk CONN RCPT 12POS FEMALE PANEL #26 12PINFMLPNLCONN, Switchcraft 12路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 商标名 | EN3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 3A |
机械参数
| 直径 | 20.62 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触头类型 | 12Signal | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Flange |
| 触头材料 | Copper Alloy | 总长度 | 25.32 |
| 端接排数 | 焊接 | 端接样式 | Solder Cup |
| 第一触头极性 | F | 触点数 | 12 |
| 位数 | 12 | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 类型 | Weathertight | 连接器性别 | RCP |
| 系列 | EN3 | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
