EN3C12M26X
| 制造商 | |
| 描述 | Standard Circular Connector 12P MALE CORD Conn Weathertight M 12 POS Solder Cup ST Cable Mount 12 Terminal 1 Port Bulk CONN PLUG 12POS MALE CORD #26 EN312-positioncableendconnector;#26goldplatedsolder-cupstylemalepins |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 直径 | 16.25 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Solder Cup | 触头类型 | 12Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 触头材料 | Copper Alloy | 总长度 | 40.13 |
| 第一触头极性 | M | 触点数 | 12 |
| 位数 | 12 | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 类型 | Weathertight | 产品特性 | Cable Clamp |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
文档与媒体
相关型号
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3P12F26SX
Switchcraft
Standard Circular Connector 12P FEMALE PANEL Conn Weathertight F 12 POS Solder Cup ST Panel Mount 12 Terminal 1 Port Bulk CONN RCPT 12POS FEMALE PANEL #26 12PINFMLPNLCONN, Switchcraft 12路 面板安装 直向 连接器 , 母触点
EN3CAPC
Switchcraft
Standard Circular Connector Connector Cap EN3 Connector Accessories Weather Tight Cap Thermoplastic Elastomer Black WEATHERTIGHT CABLE C EN3 DUST CAP, FOR IN-LINE CONNECTOR WEATHERTIGHT EN3C CAP WITH THERMOPLASTIC ELASTOMER, BLACK COLOR MATERIAL EN3DUSTCAP,FORIN-LINECONNECTOR
EN3BOOT
Switchcraft
Standard Circular Connector PROTECTIVE BOOT Connector Accessories Boot Thermoplastic Rubber Black CONN BOOT FOR EN3 boot for en3 series Cable Boots PROTECTIVE BOOT bootforen3series
EN3CLAMPX
Switchcraft
Standard Circular Connector CLAMP FOR EN3 SERIES CONNECTORS CONN CLAMP FOR EN3 SERIES
EN3BOOTL
Switchcraft
Standard Circular Connector LARGE BOOT FOR CABLE DIAMETER 0.230-0.380 Connector Accessories Boot Thermoplastic Rubber Black BOOT FOR EN3 LARGE OD Cable Boots LARGE BOOT FOR CABLE DIAMETER 0.230-0.380 BOOT,LARGE,EN3,Ro
EN3P12F26X
Switchcraft
Standard Circular Connector 12P FEMALE PANEL CONN RCPT 12POS FEMALE PANEL #26
EN3P12F26PX
Switchcraft
10-26 PC FEMALE PNL CONN RCPT 12POS PNL MNT SKT 10-26PCFEMALEPNL

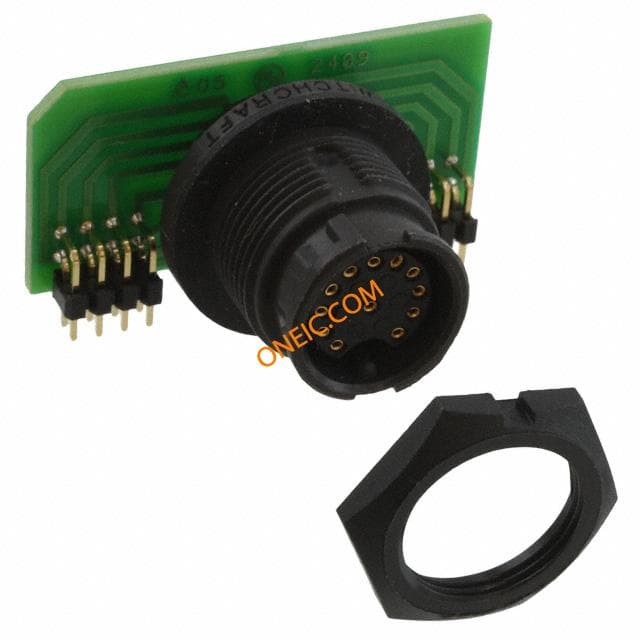

EN3P12FRAPCBW
