点击放大查看

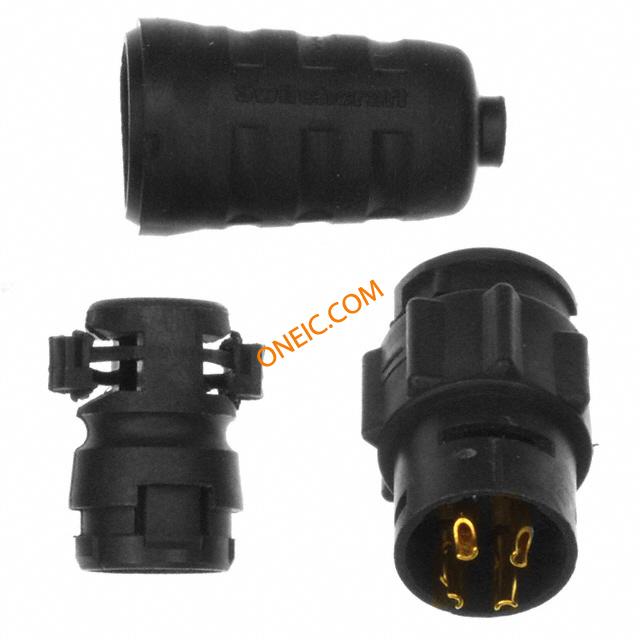

EN3L4FX
| 制造商 | |
| 描述 | Standard Circular Connector 4P FEM IN-LINE TYPE Conn Circular F 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port Bulk CONN RCPT 4POS FEM IN-LINE #20 IN-LINECONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,4PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC271 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 7.5A |
机械参数
| 直径 | 18 | 包装方式 | Bulk |
| 出线方向 | Yes | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触头类型 | 4Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Gold over Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 触头材料 | Copper Alloy |
| 壳体材料 | ThermoplasticRubber | 总长度 | 57.6 |
| 主要材料 | Sealed | 端接样式 | Solder Cup |
| 第一触头极性 | F | 配接方向 | In-Line |
| 触点数 | 4 | 位数 | 4 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | EN3 | 产品特性 | Cable Clamp |
| 制造商全称 | EN3Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
