点击放大查看

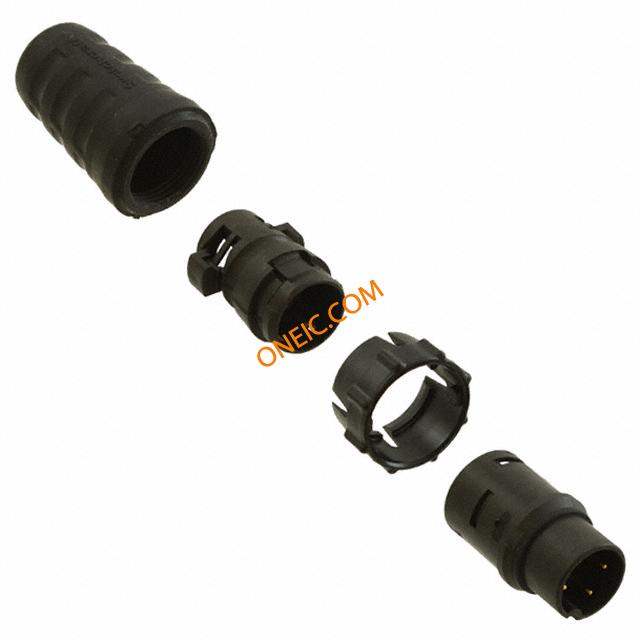

EN3C4MX

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 4P MALE CORD TYPE Conn Mini Weathertight M 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port Bulk CONN PLUG 4POS MALE CORD #20 CORDCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,4PIN
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	EN3	其他名称	SC254
产品类别	Standard Circular Connector	标准包装数量	1
工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No	材料阻燃等级	UL94-V0

电气参数

额定电压

600V

最大额定电流

7.5A

机械参数

包装方式	Bulk	导线线规	20
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触点形式	4Signal
触头类型	4Signal	安装类型	Cable Mount
外壳镀层	Gold over Nickel	行程角度	Straight
连接器类型	Plug, Male Pins	接触镀层	Gold
紧固类型	Bayonet Lock	安装样式	Cable
壳体材料	ThermoplasticRubber	主要材料	Sealed
端接样式	Solder Cup	第一触头极性	M
触点数	4	位数	4
外壳材料及表面处理	Thermoplastic Polymer, Glass Fiber

产品信息

类型	Mini Weathertight	连接器性别	M
系列	EN3	产品特性	Cable Clamp
制造商全称	EN3Series	产品子类型	Connectors
射频系列/标准	EN3	应用细节	Commercial

环境参数

防护等级

IP66/68 - Dust Tight, Water Resistant, Waterproof

文档与媒体

PDF 文档

EN3 Series Part Numbering

PDF 文档

EN3 Series Bulletin

相关型号

EN3P4FKX

Switchcraft

Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 4POS FEMALE PANEL #20

¥36.4208

详情

EN3L4FKX

Switchcraft

Standard Circular Connector EN3 INLINE 4PIN FEM. CONN RCPT 4POS FEM IN-LINE #20

¥54.6720

详情

EN3CLAMPL

Switchcraft

Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,

¥6.6320

详情

EN3P4FCX

Switchcraft

Standard Circular Connector 4P CRIMP PANEL F Conn Circular F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Bulk CONN RCPT 4POS FEMALE PANEL #20 4PINCRIMPPANELCO

¥25.1600

详情

EN3P4FRAPCX

Switchcraft

Standard Circular Connector 4P R/A PCB Conn Circular SKT 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Bulk CONN RCPT 4POS FEM R/A PANEL #20 EN3 R/A PCB PANEL MOUNT 4way socket EN3R/APCBPANELMOUNT4waysocket Switchcraft EN3 系列 4路面板安装直角连接器插头 , 母触点, 卡口式接合

¥94.1664

详情

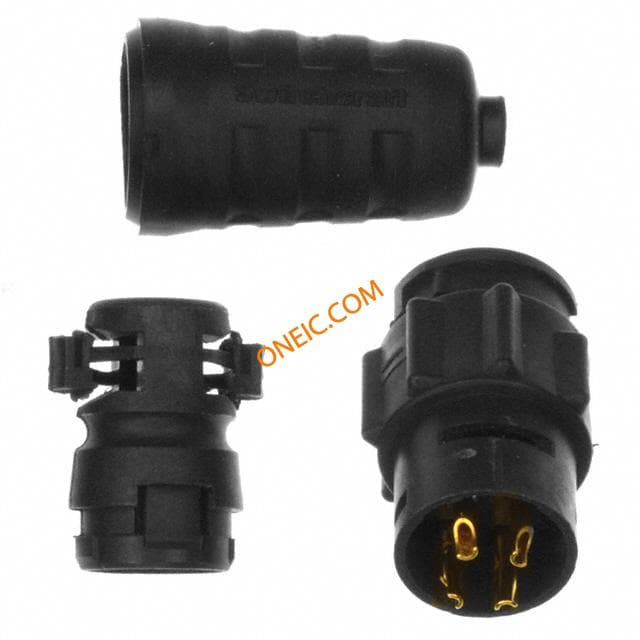

EN3L4FX

Switchcraft

Standard Circular Connector 4P FEM IN-LINE TYPE Conn Circular F 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port Bulk CONN RCPT 4POS FEM IN-LINE #20 IN-LINECONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,4PIN

¥105.5686

详情

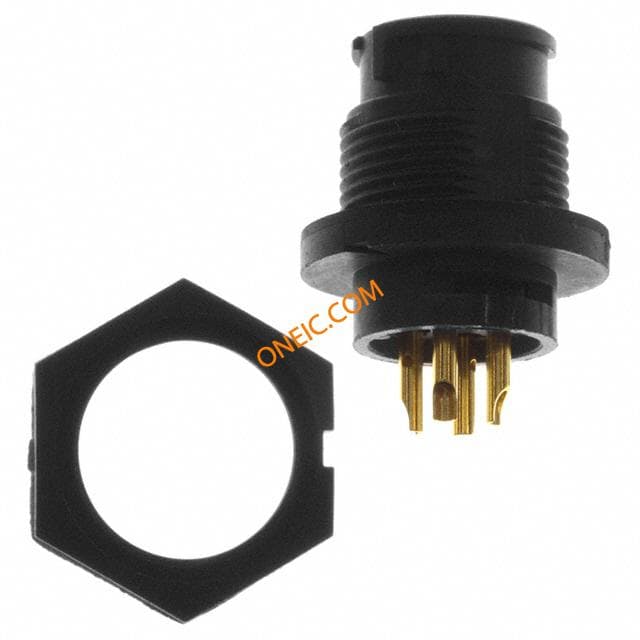

EN3P4FX
