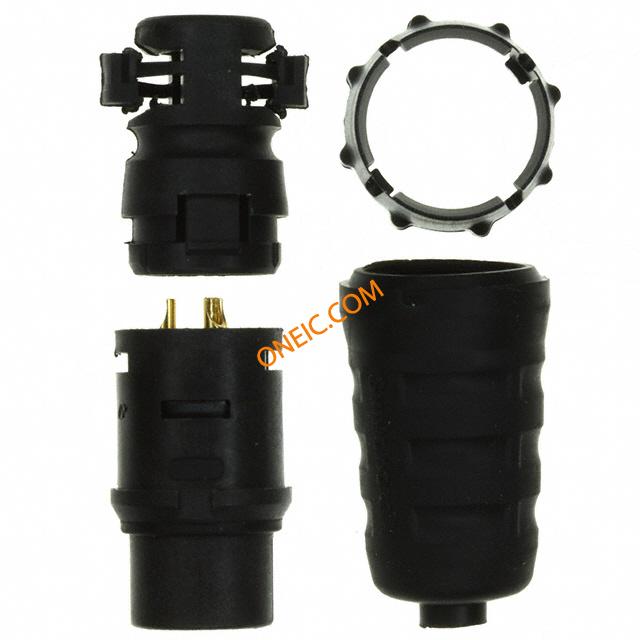

点击放大查看

EN3C3MX

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 3C MALE CORD W/#20 Conn Mini Weathertight M 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port Bulk CONN PLUG 3POS MALE CORD #20 CIRCULAR CONNECTOR, PLUG, 3POS, CABLE CORDCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,3PIN
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	EN3	其他名称	SC252
产品类别	Standard Circular Connector	标准包装数量	1
工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010	材料阻燃等级	UL94-V0

电气参数

额定电压

600 V

最大额定电流

7.5A

机械参数

重量	0	直径	16.25
包装方式	Bulk	出线方向	No
导线线规	20	方向	Keyed
外壳样式	Plug	端接方式	Solder Cup
触头类型	3Signal	安装类型	Cable Mount
行程角度	Straight	连接器类型	Plug, Male Pins
接触镀层	Gold Over Nickel	紧固类型	Bayonet Lock
安装样式	Free Hanging	插入角度	:-
本体材料	:Thermoplastic	触头材料	Copper Alloy
壳体材料	ThermoplasticRubber	主要材料	Sealed
端接样式	Solder Cup	第一触头极性	M
触点数	3	位数	3
外壳材料及表面处理	Thermoplastic Polymer, Glass Fiber	第一连接器安装类型	:Cable

产品信息

类型	Mini Weathertight	连接器性别	:Plug
系列	EN3	产品特性	Cable Clamp
制造商全称	EN3Series	产品子类型	Connectors
应用细节	Commercial

环境参数

防护等级

IP66/68 - Dust Tight, Water Resistant, Waterproof

文档与媒体

PDF 文档

EN3 Series Part Numbering

PDF 文档

EN3 Series Bulletin

PDF 文档

814625.pdf
