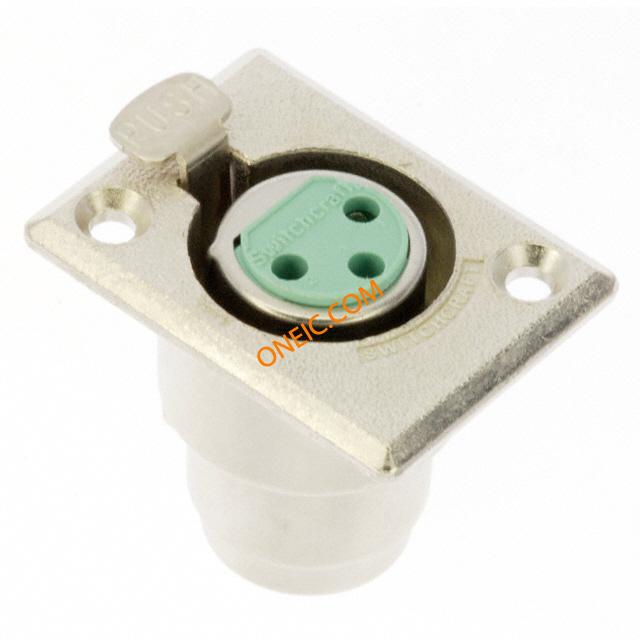

D3F

制造商	Switchcraft, Inc.
描述	XLR Connectors 3 PIN FEMALE RECEPT Conn XLR Connector F 3 POS Solder ST Panel Mount 3 Terminal 1 Port CONN PLUG AUDIO 3POS FMALE PNLMT XLR Receptacle; Black housing; Gold contacts;0.868 in.; 0.745 in. female XLRReceptacle,Blackhousing,Goldcontacts,0.868in.;0.745in.female
分类	连接器解决方案圆形连接器工业圆形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	44 Days	其他名称	SC1009
子类别	Connector Audio and Video	产品类别	XLR Connectors
标准包装数量	25	工厂包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	125VAC	供电电压	Standard XLR
最大额定电流	15A

机械参数

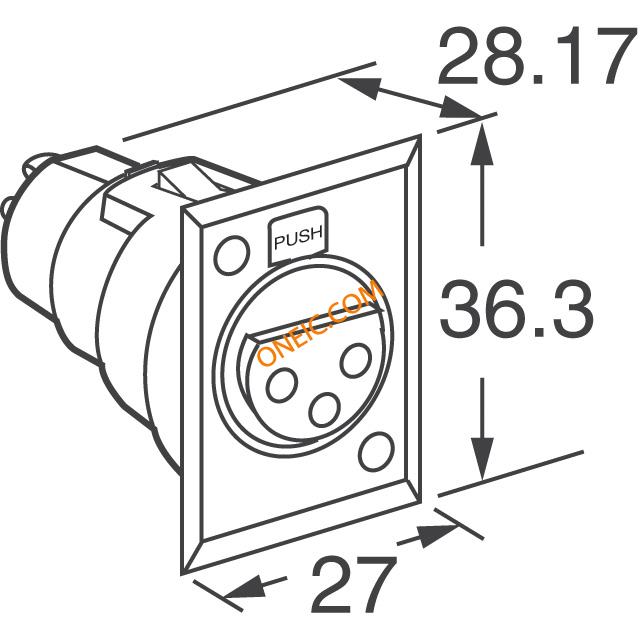

深度	36.9	高度	36.32
包装方式	Bulk	方向	Keyed
端接方式	Solder	安装类型	Panel Mount
外壳镀层	Nickel	连接器类型	Plug, Female Sockets
接触镀层	Gold	紧固类型	Latch Lock
安装样式	Chassis (Panel)	总长度	27
端接样式	Solder	触点数	3
位数	3	外壳尺寸-插件	XLR
外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

类型	XLR Connector	连接器性别	F
系列	D	产品子类型	Connectors
端口数	1

文档与媒体

在线文档

ProductSummary.aspx?Parent=609

PDF 文档

D_F Series

PDF 文档

d_f_series_cd.pdf

在线文档

Category.aspx?Parent=476
