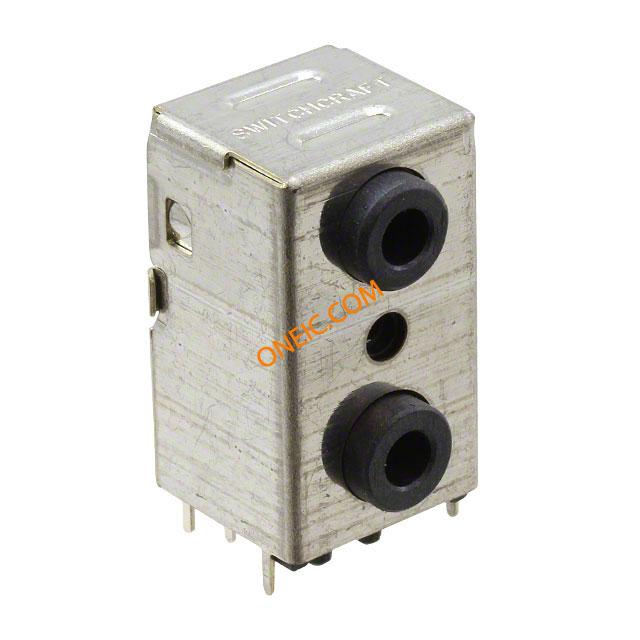

35RAPC7JS
| 制造商 | |
| 描述 | Phone Connectors 3.5MM DUAL STEREO JA Conn Audio F/F 3/3 POS Solder RA Thru-Hole 6 Terminal 2 Port CONN JACK DUAL 3COND 3.5MM VERT Jack; Dual Stereo; 3.5mm; Shielded; Vertical PCB mount CONNECTOR, PHONE, JACK, 3WAY Jack,DualStereo;3.5mm;Shielded;VerticalPCBmount |
| 分类 |
商业参数
| 交货时间 | 44 Days | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94V-0 |
电气参数
| 信号线数 | Stereo | 额定电压 | 500 V |
| 供电电压 | 3.5 mm, 1/8 in | 开关功能/额定值 | Switched |
机械参数
| 尺寸 | 3.5mm | 颜色 | Black |
| 深度 | 16.1 mm | 高度 | 26.7 mm |
| 重量 | 0.009 | 屏蔽 | Shielded |
| 绝缘类型 | Insulated | 方向 | Horizontal |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Through Hole | 行程角度 | RightAngle |
| 连接器类型 | Phone Jack | 接触镀层 | Silver |
| 安装样式 | Through Hole | 本体材料 | :Plastic |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 15 mm | 主要材料 | Phone |
| 端接样式 | Through Hole | 触点数 | 3/3 |
| 接触件端接 | :Through Hole Vertical | 按钮/帽颜色 | Silver |
| 法兰下方引脚尺寸 | :3.5mm | 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| 触点材料 - 镀层 | Silver | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Audio | 连接器性别 | F/F |
| 系列 | 35RAPC | 产品特性 | Dual |
| 端口数 | 2 | 内部开关 | Two Switches |
| 位置/触点数量 | 2 Sets of 3 Conductors, 8 Contacts | ||
