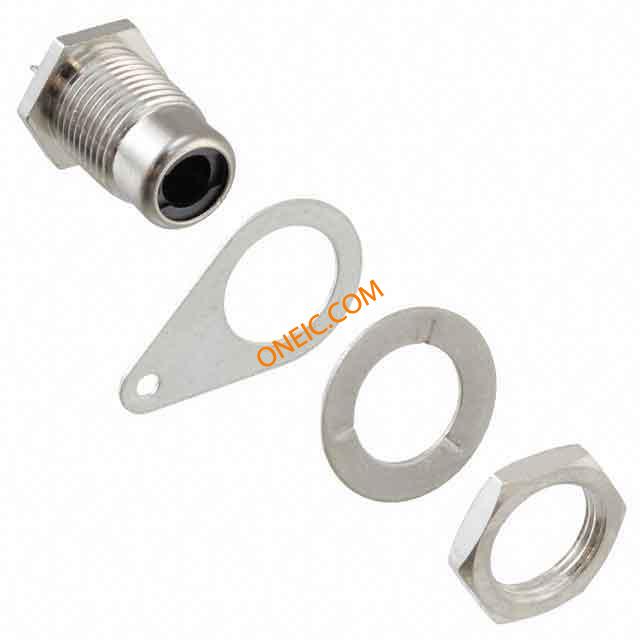

3501FRX
| 制造商 | |
| 描述 | RCA Phono Connectors REAR MOUNT JACK Conn RCA F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHONO 2POS REAR PNLMT Jack; Phone; Panel; 2; 0.203 Jack,Phone;Panel;2;0.203 |
| 分类 |
商业参数
| 其他名称 | SC1320 | 产品类别 | RCA Phono Connectors |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | ||
机械参数

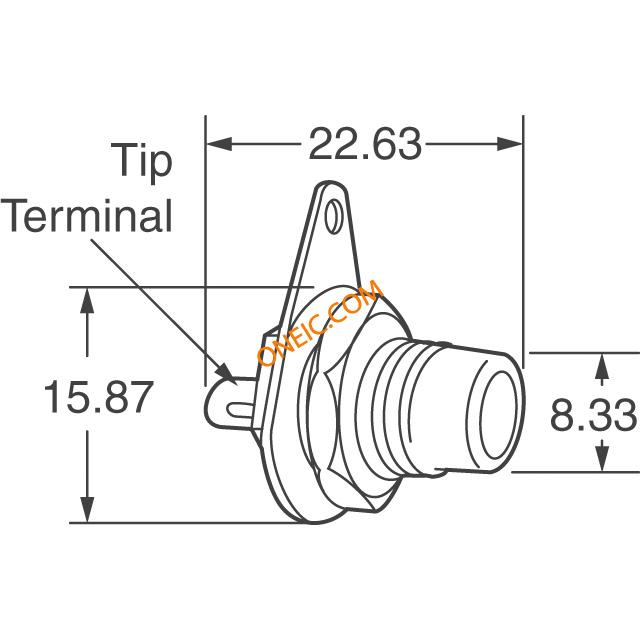

| 深度 | 15.88 | 高度 | 23.03 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 端接方式 | Solder | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Phono (RCA) Jack | 安装样式 | Chassis (Panel) |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 22.63 | 主要材料 | RCA(Phono) |
| 端接样式 | Screw | 触点数 | 2 |
| 按钮/帽颜色 | Black | 插头/配合插头直径（类型） | 3.20mm ID, 9.00mm OD (RCA) |
| 触点材料 - 镀层 | Nickel | ||
产品信息
| 类型 | RCA | 连接器性别 | F |
| 系列 | RCA | 产品特性 | Grounding Tab, Mounting Hardware |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 2 Conductors, 2 Contacts | ||
环境参数
| 工作温度 | 85 | ||
文档与媒体
相关型号
S1029
Switchcraft
Screws & Fasteners FIBER WASHER W SHLDR 3/8 HOLE, 5/8 DIA WASHER SHOULDER FIBRE RCA Phono Connectors WASHER FOR 3501FR Washers Shoulder 5/8in 1/32 FASTENERS, WASHER RCAPhonoConnectorsWASHERFOR3501FR
S1028
Switchcraft
Screws & Fasteners BROWN PLASTIC WASHER 3/8 HOLE, 5/8 DIA Washers Flat Rigid Plastic 3/8in 5/8in 0.031in WASHER FLAT PLASTIC Rigid plastic brown washer 5/8 in x 3/8 in x .020 in. Washers Flat Rigid Plastic 9.53 15.88 0.79 FASTENERS, WASHER Rigidplasticbrownwasher5/8inx3/8inx.020in.
3501MX
Switchcraft
RCA Phono Connectors BASIC PLUG Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2PS NO CBL CLAMP PHONOPLUG,RoHS
35581X
Switchcraft
RCA Phono Connectors PLUG W/RED HANDLE Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS RED W/HDWR phono plug; red phonoplug,red
35582X
Switchcraft
RCA Phono Connectors BLACK PLUG W/CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS BK W/HDWR phono plug; black phonoplug,black
3501MCX
Switchcraft
RCA Phono Connectors PLUG W/ CABLE CLAMP CONN PLUG PHONO 2POS CABLE CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port
3502
Switchcraft
RCA Phono Connectors Ni HD PLUG W/CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS SHIELDED Phone Plug; 2; Solder; 0.285 in. (Max.); Copper Alloy; Nickel; 0.688 in. PhonePlug;2;Solder;0.285in.(Max.);CopperAlloy;Nickel;0.688in.

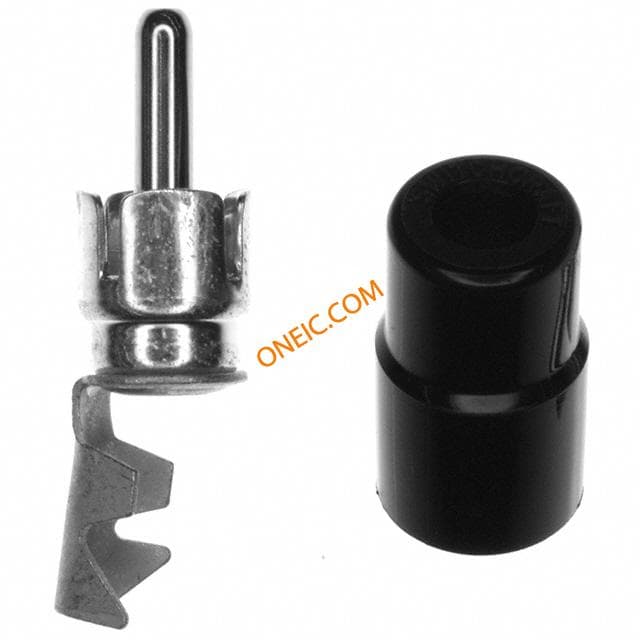

3558-2
