点击放大查看

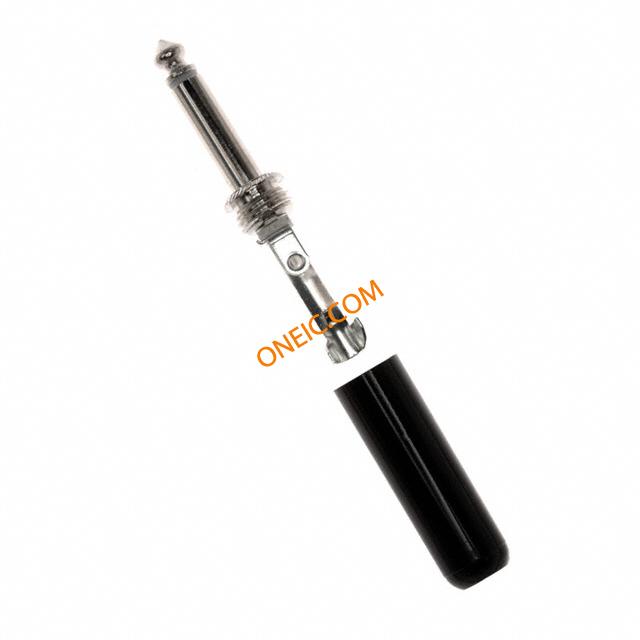

250

制造商	Switchcraft, Inc.
描述	Phone Connectors 2 COND 1/4 BLK Conn 1/4" Phone Plug M 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONE 1/4" 2POS BLACK Plug,Phone;SolderLugandCableClamp;0.290in.(Max.);CopperAlloy
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	44 Days	其他名称	SC1072
子类别	Connector Audio and Video	产品类别	Phone Connectors
标准包装数量	100	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

信号线数	Mono	供电电压	1/4 in
开关功能/额定值	Not Switched

机械参数

颜色	Black	包装方式	Bulk
屏蔽	Unshielded	端接方式	Solder
外壳颜色	Black	安装类型	Cable Mount
连接器类型	Phone Plug	接触镀层	Tin
安装样式	Cable	触头材料	Copper Alloy
壳体材料	Polyamide (PA), Nylon	端接样式	Solder
触点数	2	按钮/帽颜色	Silver
插头/配合插头直径（类型）	6.35mm (0.250", 1/4") - Headphone	触点材料 - 镀层	Nickel

产品信息

类型	1/4" Phone Plug	连接器性别	M
系列	1/4" Guitar Plugs	产品特性	Cable Clamp
端口数	1	内部开关	Does Not Contain Switch
位置/触点数量	2 Conductors, 2 Contacts

文档与媒体

在线文档

ProductSummary.aspx?Parent=1018

PDF 文档

250 Drawing

在线文档

ProductSummary.aspx?Parent=969

在线文档

Category.aspx?Parent=69

相关型号

SN70B12A

Switchcraft

Phone Connectors R/A PHONE JACK CONN PHONE JACK 2COND SGL CLOSED Conn 1/4" Phone Jack F 2 POS 7.62mm Solder RA Thru-Hole 4 Terminal 1 Port

¥7.8200

详情

111X

Switchcraft

Phone Connectors 2C ENCLOSED 1/4 Conn Audio F 2 POS Solder Lug ST Panel Mount 5 Terminal 1 Port PHONE HI-D JACK .25" 2COND SLD Jack; Phone; Screw Mount; 2; Nickel Plated Copper Alloy; 0.25 in.; 0.276 in. Jack,Phone;ScrewMount;2;NickelPlatedCopperAlloy;0.25in.;0.276in.

¥9.1800

详情

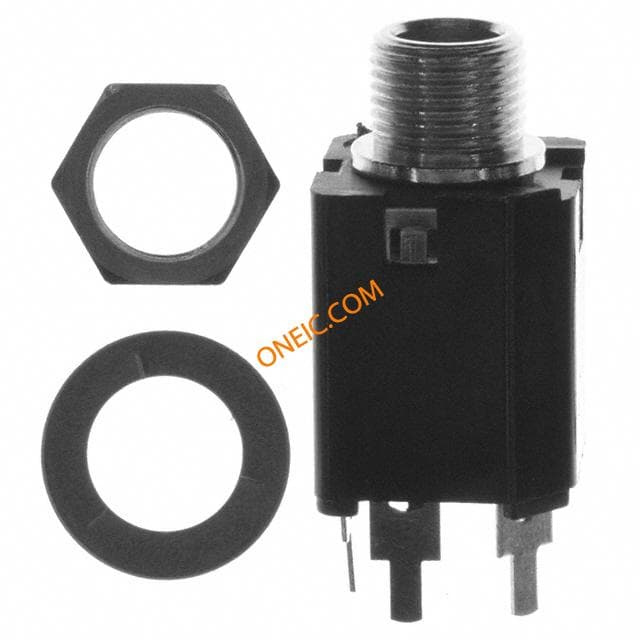

112APCX

Switchcraft

Phone Connectors 2C ENCLOSED 1/4 Conn Audio F 2 POS Solder ST Thru-Hole 5 Terminal 1 Port PHONE HI-D JACK .25" 2COND PCB 2way straight PCB/chassis jack skt,1/4in SOCKET, JACK, PCB, 2POLE 1/4in2condenclosedjack,Singleclosedcircuit,PCterminals Switchcraft 1/4in 母通孔插孔连接器

¥17.6384

详情

RA49B12A

Switchcraft

Phone Connectors 2C R/A 1/4 JACK Conn 1/4" Phone Jack F 2 POS 7.62mm Solder RA Thru-Hole 4 Terminal 1 Port CONN JACK R/A 2-COND SGL CLOSED JACKASSY

¥9.3840

详情

SN49A12A

Switchcraft

Phone Connectors PHONE JACK Conn 1/4" Phone Jack F 2 POS Solder RA Thru-Hole 2 Terminal 1 Port CONN PHONE JACK 2COND SGL CLOSED PHONEJACK

¥14.1440

详情

88

Switchcraft

Phone Connectors 1/4 EXT JACK N LINE Conn Audio F 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN JACK EXT 1/4" BLACK SLD LUG Conn;AV;Phone;Jack;2Conds;1/4In;CableMount;BlackHandle;SolderLugs

¥25.5000

详情

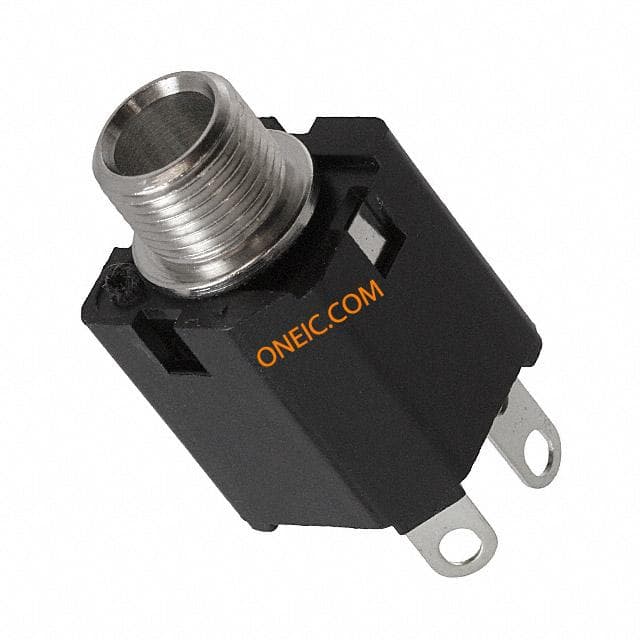

113X

Switchcraft

Phone Connectors 2C ENCLOSED 1/4 Conn Audio F 2 POS Solder Lug ST Panel Mount 2 Terminal 1 Port CONN JACK PHONE 1/4" 2POS "MAKE" HIDJAX,RoHS

¥15.4360

详情

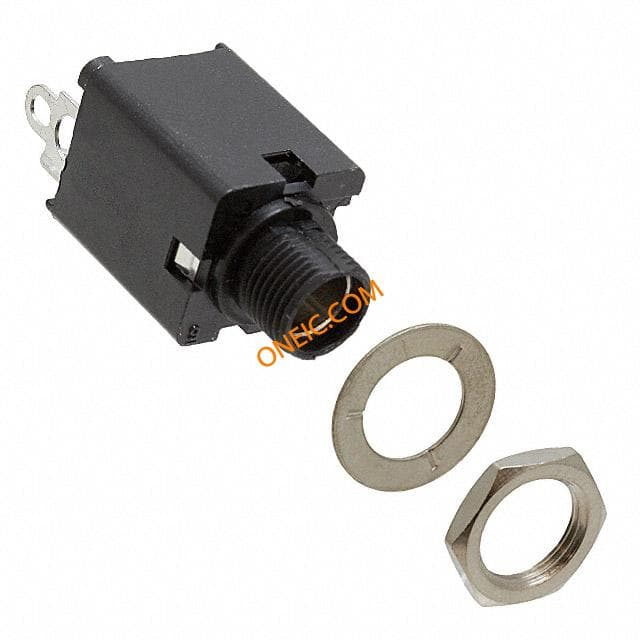

N112AX
