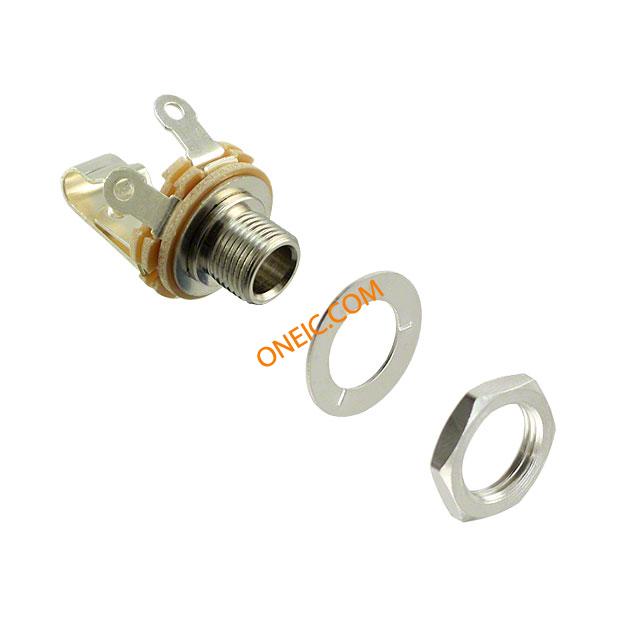

12A
| 制造商 | |
| 描述 | Phone Connectors 2 CONDUCTOR 1/4 Conn 1/4" Phone Jack F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHN 1/4" 2POS TIP SHNT Jack; Phone; Panel Mount; 2; Nickel Plated Copper Alloy; 0.437 in.; 1/4 in. SOCKET, 1/4" JACK, PANEL, 2POLE Jack,Phone;PanelMount;2;NickelPlatedCopperAlloy;0.437in.;1/4in. Jack panel socket ø 6.35 mm nickel-plated 2P, 12A, Switchcraft |
| 分类 |
商业参数
| 交货时间 | 20 Days | 其他名称 | SC1089 |
| 子类别 | Connector Audio and Video | 产品类别 | Phone Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 信号线数 | Mono | 额定电压 | 25 V |
| 供电电压 | 1/4 in | 最大额定电流 | 1 |
| 最小输入电压 | 25VDC | 开关功能/额定值 | Switched |
机械参数
| 长度 | :32mm | 重量 | 0.012 |
| 材料（通用） | :Nickle Plated Brass Finish | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 端接方式 | Solder |
| 引脚直径 | :6.35mm | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Phone Jack |
| 接触镀层 | Nickel | 安装样式 | Chassis (Panel) |
| 本体材料 | :Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Brass | 总长度 | 32.41 |
| 端接样式 | Solder Lug | 触点数 | 2 |
| 接触件端接 | :Solder | 按钮/帽颜色 | Silver |
| 法兰下方引脚尺寸 | :6.35mm | 插头/配合插头直径（类型） | 6.35mm (0.250", 1/4") - Headphone |
| 触点材料 - 镀层 | Tin | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | 1/4" Phone Jack | 连接器性别 | F |
| 系列 | Littel-Jax | 产品特性 | Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Single Switch |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
环境参数
| 工作温度 | :65°C | ||
