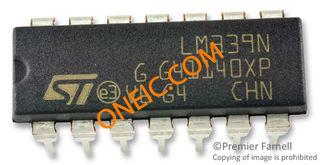

LM339N
| 制造商 | STMicroelectronics N.V. |
| 描述 | Comparator Quad ±16V/32V 14-Pin PDIP Tube Comparator ICs Lo-Pwr Quad Voltage QUAD.BIP.VOLT.C IC COMPARATOR LP QUAD 14-DIP Comparator Quad ¦18V/36V 14-Pin PDIP Rail COMPARATOR, QUAD, 14DIP |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 25 |
| 其他名称 | 497-1589-5 | 产品类别 | Comparator ICs |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423300 | 汽车级 | NO |
| 零件状态 | :339 | 无铅定义 | RoHS-conform |
电气参数
| 通道数 | 4 | 输出类型 | Open Collector |
| 响应时间 | 1.3 us | 比较器类型 | :Precision |
| 输出电流 | :1.3mA | 供电电流 | 2 mA |
| 供电电压 | 2 V | 通道数量 | 4 |
| 元件数量 | 4 | 阈值电压 | 5 mV |
| 最小输入电压 | 2V | 输出电流（典型） | 0.1 nA |
| 最大功耗 | 1500 mW | 静态电流（最大） | 2.5mA |
| 输入偏置电流（最大） | 0.025nA | 额定电流（每触点） | 0.1µA |
| 发射极-基极电阻（R2） | NO | 输入失调电压（最大） | 5 mV |
| 电压输出差（典型值）@ 距离 | 106.02 dB | ||
机械参数
| 重量 | 0.000001 | 包装方式 | Tube |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :14 | 封装形式 | 14PDIP |
| 材料表面处理 | :- | 顶部端接 | 70°C |
| 位数 | :339 | 最小工作高度 | 0°C |
| 供应商器件封装 | 14-DIP | ||
产品信息
| 类型 | General Purpose | 产品特性 | :Quad Low Power |
| 基本单元 | :339 | 匹配码 | LM339N TD |
| 标准交期 | 45 weeks | 使用的IC/零件 | :LM339N |
| 其他规格 | LowPower | 输出配置 | :CMOS, DTL, ECL, MOS, TTL |
| 比较器数量 | :4 | ||
环境参数
| 温度范围 | :Commercial | 工作温度 | 0 to 70 °C |
文档与媒体
相关型号
