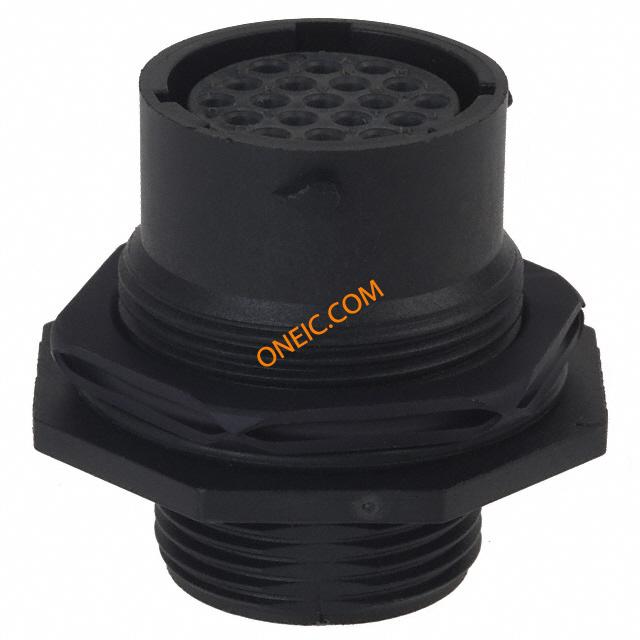

UTS71419S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Sckt Receptacle Jam Nut Size 14 CONN RCPT 19X1.0 FEMALE JAM NUT 19 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts connector,plasticcirc,size14,jamnutrecept,for19size20socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 19P Female 14, UTS71419S, Souriau Souriau 19路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1286 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Not Applicable | ||
电气参数
| 频率 | 30.2 | 电容 | 3.2 |
| 额定电压 | 125 V ac | 极数 | 19 |
| 最大额定电流 | 5 A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 14 | 包装方式 | Bulk |
| 壳体颜色 | 33.9 | 外壳尺寸 | 14 |
| 方向 | Keyed | 外壳样式 | Jam Nut |
| 端接方式 | Crimp | 重量（g） | 25.7 |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 14-19 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Female |
| 外径 | 34.9 | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 14-19 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
| 放大器类型 | 19.3 | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
文档与媒体
相关型号
RC20W3K
Souriau
Standard Circular Contacts Crimp Socket Contact 20-22 AWG CONTACT SKT CRIMP 20-22AWG GOLD UT0W Series Size 20 7.5A Female Circular Connector Contact, Crimp,Wire size 22 to 20AWG CONTACT SOCKET, UT0W, 22-20AWG SOCKETCONTACTSSIZE20-0.35-0.5MM2 Female contact 0.35...0.5 mm² Female, RC20W3K, Souriau Souriau UT0W 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于UT0W 圆形连接器, 22 → 20 AWG 线规格
SC24WL-3S25
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 20 CONTACT SKT CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size20,26-24awgwire Contact;Socket;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSCSer;Gold
UTS714CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Red CONN RCPT CODING RING SIZE14 RED RECEPTACLE COLOR CODING SIZE 14 - RED CODING RING, UTS CIRCULAR CONNECTOR CODING RING, RECEPTACLE, SIZE14, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,red Coding ring for receptacles size 14, UTS714CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 14
UTS714CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Green CONN RCPT CODING RING SIZE14 GRN RECEPTACLE COLOR CODING SIZE 14 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,green Coding ring for receptacles size 14, UTS714CCRG, Souriau
UTS6JC1419P
Souriau

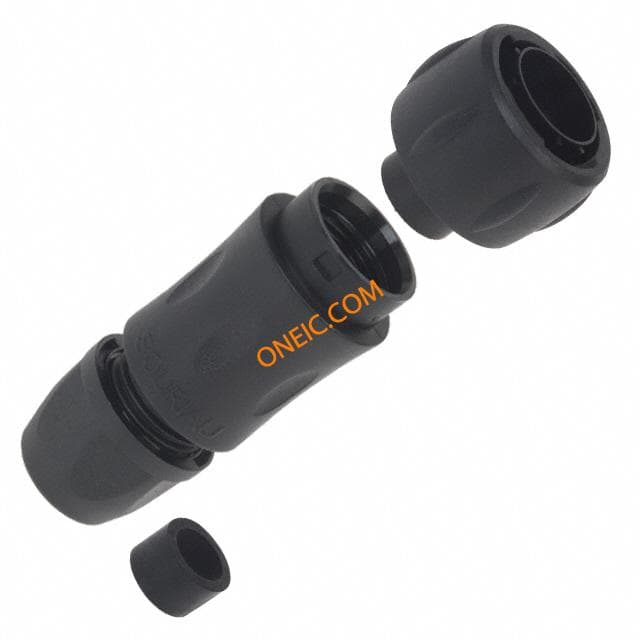

Standard Circular Connector 19P Strt Pin Plug Backshell Size 14 CONN PLUG CABLE 19X1.0 MALE 19 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts UTS Series connector,plasticcirc,size14,strplugw/bkshl,for19size20pincont,sealed CONN HSG PLUG 19POS CABLE PIN Coupling Plug UTS Trim Trio UTS 19P Male 14, UTS6JC1419P, Souriau Souriau UTS 系列 19路 电缆安装 直向 连接器 插头 , 公触点
UTS14DCG
Souriau

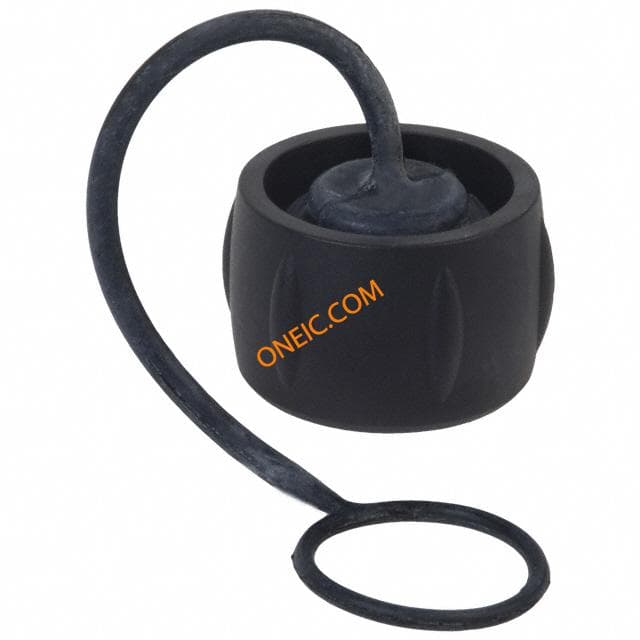

Standard Circular Connector Receptacle Dust Cap Shell Size 14 Connector Accessories Receptacle Sealing Cap Shell Size 14 CONN RCPT SEALING CAP SIZE 14 UTS RECEPTACLE DUSTCAP - SIZE 14 DUST CAP, RECEPTACLE, SIZE14 connectoraccessory,dustcapforsize14uts-seriesreceptacle Cap for receptacles size 14, UTS14DCG, Souriau
