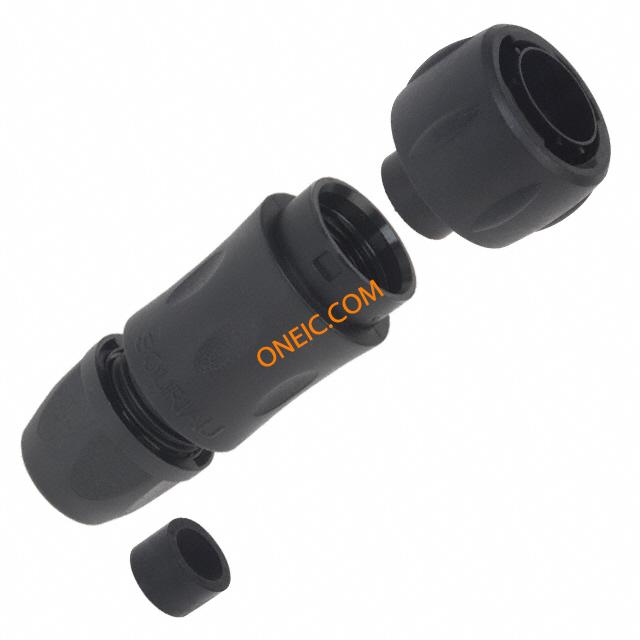

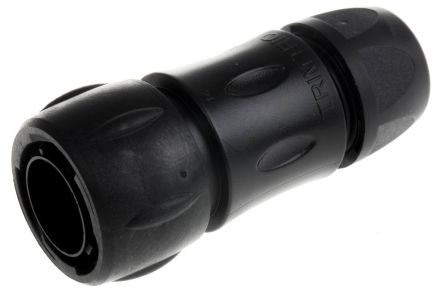

UTS6JC1419P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Strt Pin Plug Backshell Size 14 CONN PLUG CABLE 19X1.0 MALE 19 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts UTS Series connector,plasticcirc,size14,strplugw/bkshl,for19size20pincont,sealed CONN HSG PLUG 19POS CABLE PIN Coupling Plug UTS Trim Trio UTS 19P Male 14, UTS6JC1419P, Souriau Souriau UTS 系列 19路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1305 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 125 V ac | 极数 | 19 |
| 最大额定电流 | 5 A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 14 | 包装方式 | Bulk |
| 壳体颜色 | 71.5 | 外壳尺寸 | 14 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点形式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 电缆端类型 | 5...14 mm | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | straight |
| 插入角度 | 14-19 | 锁定特性 | Bayonet locking |
| 触头材料 | CuNi+Au | 壳体材料 | Plastic |
| 端接排数 | 压接 | 端接样式 | Crimp Connection |
| 第一触头极性 | Male | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 14-19 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTS | 产品子类型 | Plugs |
| 放大器类型 | 34.6 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 密封等级 | IP68, IP69K | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
文档与媒体
相关型号
UTS1JC1419S
Souriau
Standard Circular Connector 19P Skt Recept Sz 14 Cable Mnt Backshell CONN HSG RCPT 19POS INLINE FEM CIRCULAR CONNECTOR RCPT SIZE 14, 19POS, CABLE Souriau UTS 系列 19路 电缆安装 直向 圆形连接器 插座 , 母触点
RMW5016K
Souriau
Standard Circular Contacts CIR CON ML SLDR DIP CONT CONTACT PIN SOLDER GOLD SIZE 20
UTS614CCRY
Souriau
Standard Circular Connector Plug Ring Size 14 Yellow CONN PLUG CODING RING SIZE14 YEL CODING RING, PLUG, YELLOW connectoraccessory,uts-series,optionalcolorcodedring,plugsize14,yellow Coding ring, cable side size 14, UTS614CCRY, Souriau
UTS71419S
Souriau
Standard Circular Connector 19P Sckt Receptacle Jam Nut Size 14 CONN RCPT 19X1.0 FEMALE JAM NUT 19 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts connector,plasticcirc,size14,jamnutrecept,for19size20socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 19P Female 14, UTS71419S, Souriau Souriau 19路 面板安装 直向 连接器 插座 , 母触点
RM20W3K
Souriau
Standard Circular Contacts MALE CRIMP CONTACT AWG 20 CONTACT PIN CRIMP 20-22AWG GOLD PIN CONTACTS SIZE 20 - 0.35-0.5 MM2 CIRCULAR CONTACT, PIN, 22-20 AWG, CRIMP PINCONTACTSSIZE20-0.35-0.5MM2 Male contact 0.35...0.5 mm² Male, RM20W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24W-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 CONTACT PIN CRIMP 24-26AWG GOLD
UTS614CCRR
Souriau
Standard Circular Connector Plug Ring Size 14 Red CONN PLUG CODING RING SIZE14 RED CABLE PLUG COLOR CODING SIZE 14 - RED CODING RING, UTS CIRCULAR CONNECTOR connectoraccessory,uts-series,optionalcolorcodedring,plugsize14,red Coding ring, cable side size 14, UTS614CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 14
SM24WL-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincont,size20,for26-24awgwire Contact;Pin;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSMSer;Gold
UTS614CCRG
Souriau
Standard Circular Connector Plug Ring Size 14 Green CONN PLUG CODING RING SIZE14 GRN CABLE PLUG COLOR CODING SIZE 14 - GREEN CODING RING, PLUG, SIZE14, GREEN connectoraccessory,uts-series,optionalcolorcodedring,plugsize14,green Souriau 绿色 连接器环,适合外壳尺寸 14

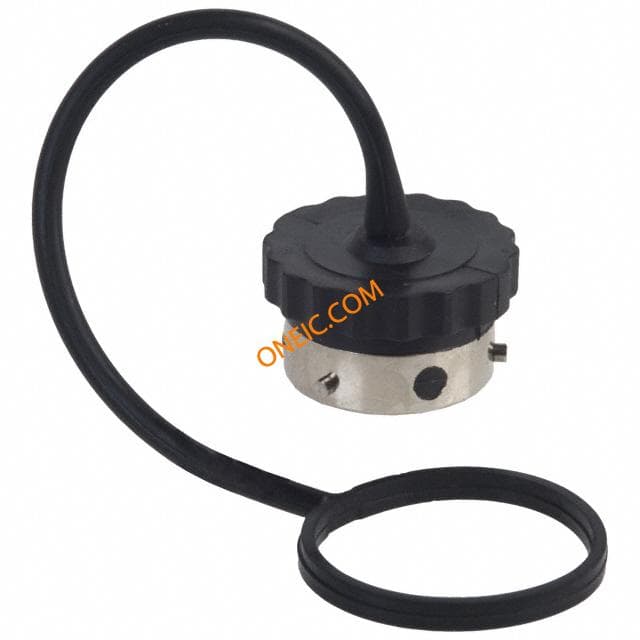

UTS614DCG
