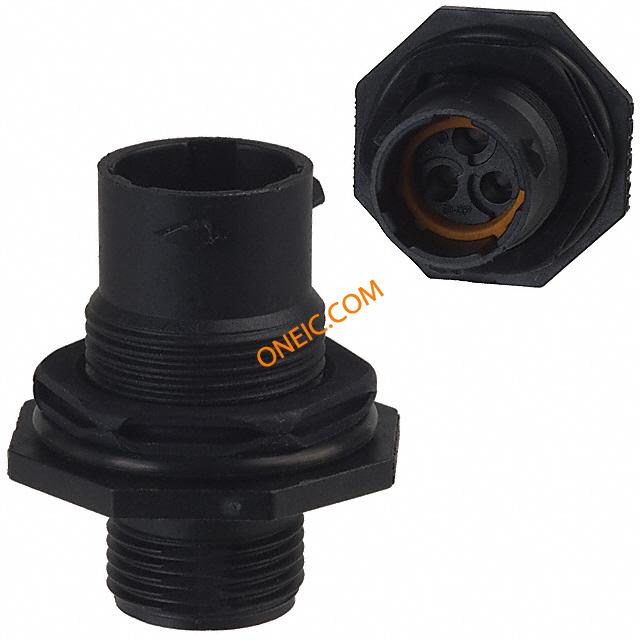

UTS7103P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 3P Straight Pin Plug Jam Nut Size 10 CONN RCPT 3X1.6 MALE JAM NUT 3 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts UTS Series connector,plasticcirc,size10,jamnutrecept,for3size16pincont,sealed Panel Mount Plug UTS Trim Trio UTS 2+PEP Male 10, UTS7103P, Souriau Souriau UTS 系列 3路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1288 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 频率 | 22.2 | 电容 | 3.2 |
| 额定电压 | 250 V ac | 极数 | 2+PE |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 10 | 包装方式 | Bulk |
| 壳体颜色 | 33.9 | 外壳尺寸 | 10 |
| 方向 | Keyed | 外壳样式 | Jam Nut |
| 端接方式 | Crimp | 重量（g） | 17.7 |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 10-3 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Male |
| 外径 | 27 | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | 10-3 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
| 放大器类型 | 19.3 | ||
环境参数
| 密封等级 | IP68, IP69K | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
