点击放大查看

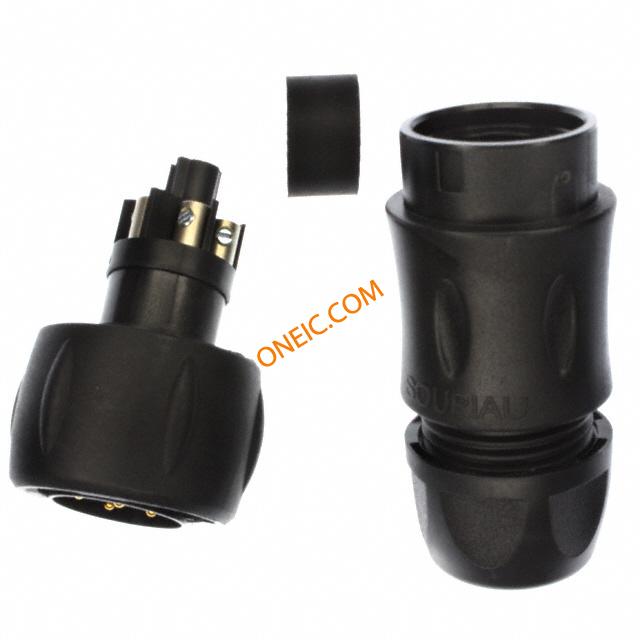

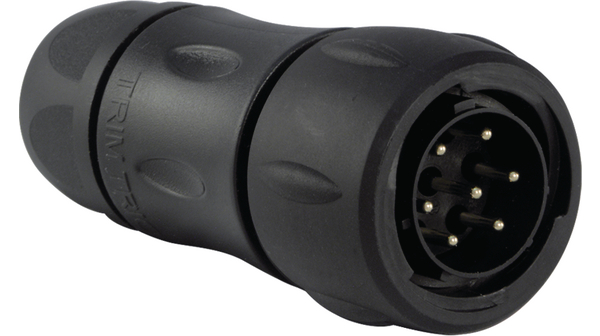

UTS6JC147PSCR
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 7P Straight Pin Plug Backshell Size 14 CONN PLUG CABLE 7POS MALE SCREW 7 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts PLUG, SCREW, SIZE14, 7WAY, PIN Plug Coupling Plug UTS Trim Trio UTS 7P Female 14, UTS6JC147PSCR, Souriau Souriau 7路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1534 |
| 标准包装数量 | 1 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 500V | 最大额定电流 | 10A |
机械参数
| 重量 | 0.045 | 包装方式 | Bulk |
| 外壳尺寸 | 14 | 方向 | N (Normal) |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 14-7 |
| 触头材料 | Copper Alloy | 端接样式 | Screw |
| 第一触头极性 | Male | 触点数 | 7 |
| 接触件端接 | :Screw | 位数 | 7 |
| 外壳尺寸-插件 | 14-7 | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 16µin (0.40µm) | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Male | 系列 | UTS |
| CAD图纸 | 3D CAD Model | 适配器类型 | CablePlug |
| 产品子类型 | Plugs | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
