点击放大查看

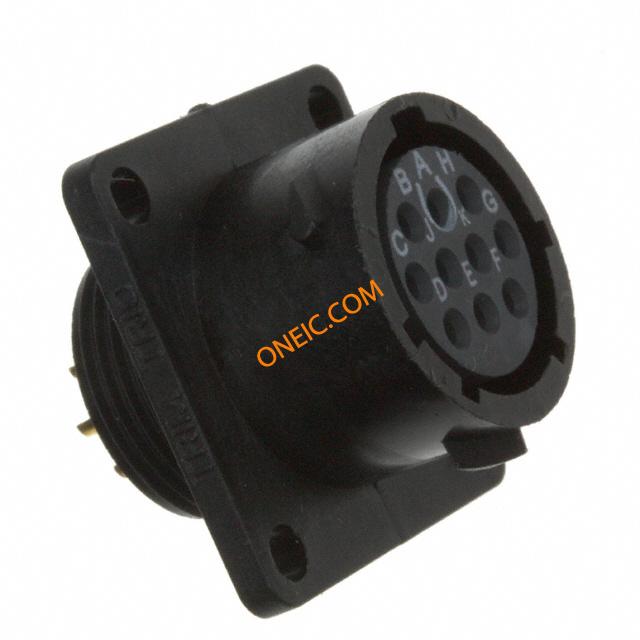

UTS012E10S
| 制造商 | SOURIAU SAS |
| 描述 | Circular MIL Spec Connector 10P Sckt Receptacle Square Flange Sz 12E CONN RCPT SQ FLANGE 10POS W/SCKT 10 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts Standard Circular Connector 10P Sckt Receptacle Square Flange Sz 12E RECEPTACLE, HISEAL, SIZE12, 10WAY, SKT SquareFlangeReceptaclewith10SocketContacts Panel Mount Socket with Flange UTS Hi seal 10P Female 12, UTS012E10S, Souriau Souriau 10路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1511 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 4.5A |
| 电阻公差 | Gasoil,MineralOil,AcidBath,BasicBath | ||
机械参数
| 颜色 | Black | 重量 | 0.02 |
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 端接方式 | Solder Cup | 触点形式 | Female |
| 触头类型 | SolderContactsLoaded | 螺母材料 | Metal |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 12-10 | 本体材料 | :Thermoplastic |
| 触头材料 | :Copper | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 10 |
| 接触件端接 | :Solder | 位数 | 10 |
| 外壳尺寸-插件 | 12-10 | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 16µin (0.40µm) | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | UTSConnector | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
文档与媒体
相关型号

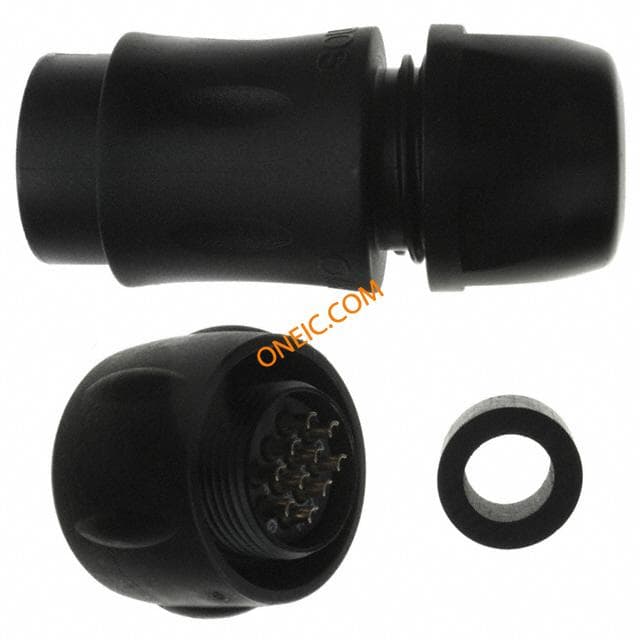

UTS6JC12E10P
Souriau
Circular MIL Spec Connector 10P Strt Pin Plug Backshell Size 12E CONN PLUG CABLE 10POS W/PIN 10 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts Standard Circular Connector 10P Strt Pin Plug Backshell Size 12E PLUG, HISEAL, SIZE12, 10WAY, PIN CablePlugwith10PinContacts Coupling plug UTS Hi seal 10P Male 12, UTS6JC12E10P, Souriau Souriau 10路 电缆安装 直向 连接器 插头 , 公触点
UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau
UTS012E10S
Souriau
Circular MIL Spec Connector 10P Sckt Receptacle Square Flange Sz 12E CONN RCPT SQ FLANGE 10POS W/SCKT 10 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts Standard Circular Connector 10P Sckt Receptacle Square Flange Sz 12E RECEPTACLE, HISEAL, SIZE12, 10WAY, SKT SquareFlangeReceptaclewith10SocketContacts Panel Mount Socket with Flange UTS Hi seal 10P Female 12, UTS012E10S, Souriau Souriau 10路 面板安装 直向 连接器 插座 , 母触点

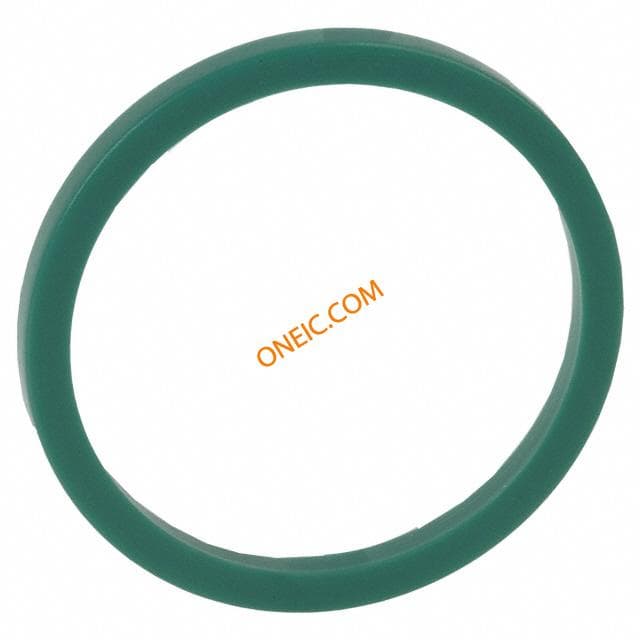

UTS712CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Green CONN RCPT CODING RING SIZE12 GRN RECEPTACLE COLOR CODING SIZE 12 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,green Coding ring for receptacles size 12, UTS712CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 12

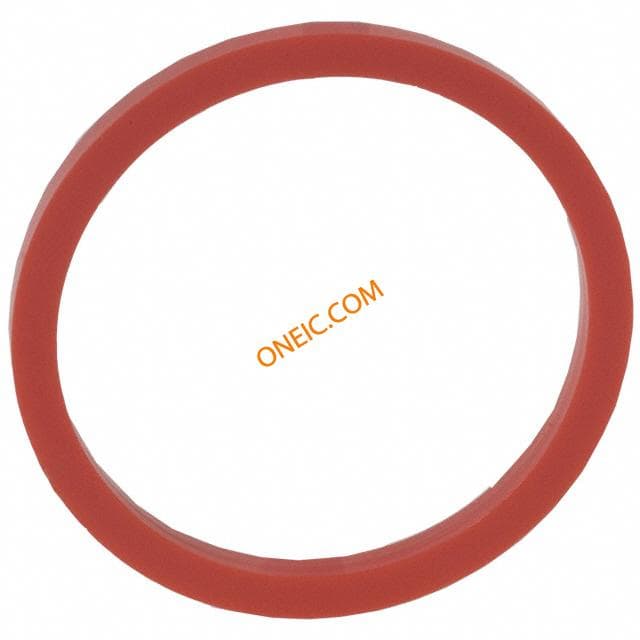

UTS712CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Red Connector Accessories Color Coding Ring For Receptacle Red Shell Size 12 CONN RCPT CODING RING SIZE12 RED RECEPTACLE COLOR CODING SIZE 12 - RED CODING RING, RECEPTACLE, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,red Coding ring for receptacles size 12, UTS712CCRR, Souriau

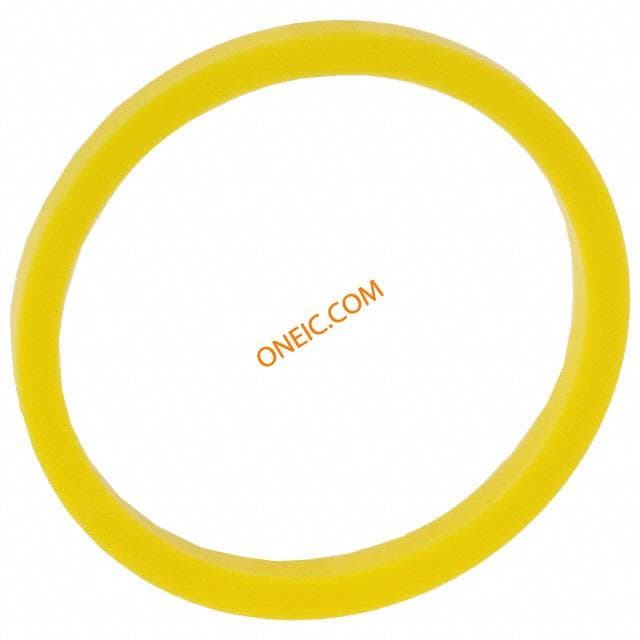

UTS712CCRY
