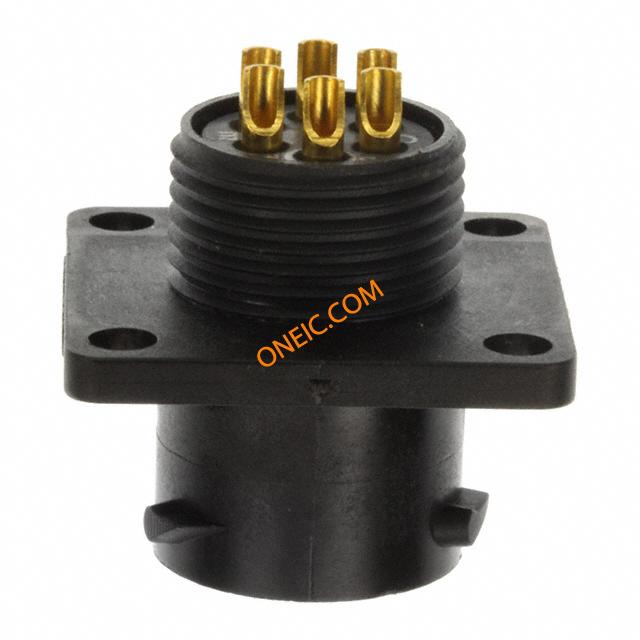

UTS010E6P
| 制造商 | SOURIAU SAS |
| 描述 | Circular MIL Spec Connector 6P Pin Receptacle Square Flange Sz 10E CONN RCPT SQ FLANGE 6POS W/PIN 6 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts SquareFlangeReceptaclewith6PinContacts Souriau 6路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1508 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | MIL类型 | MIL-DTL-26482 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 6A |
| 电阻公差 | Gasoil,MineralOil,AcidBath,BasicBath | ||
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 10 |
| 包装方式 | Bulk | 外壳尺寸 | 10 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 端接方式 | Solder Cup | 触点形式 | Male |
| 触头类型 | SolderContactsLoaded | 螺母材料 | Metal |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 10-6 |
| 本体材料 | Thermoplastic | 端接排数 | 焊接 |
| 端接样式 | Solder | 第一触头极性 | Male |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | 10-6 | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 16µin (0.40µm) | ||
产品信息
| 类型 | UTSConnector | 连接器性别 | Female |
| 系列 | UTS Hi Seal | 产品特性 | Cap (Cover), Dust |
| 产品子类型 | Receptacles | 输出配置 | Panel Mount, Flange |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
