点击放大查看

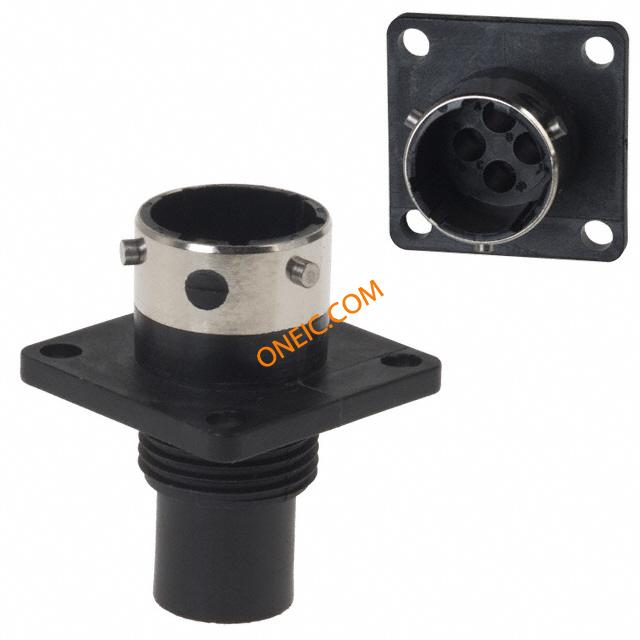

UTG0104P
| 制造商 | SOURIAU SAS |
| 描述 | CONN RCPT MALE 4POS WALL MT Conn CPC With Metal Coupling PIN 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CIRCULAR CONN, RECEPTACLE, 4 WAY, PANEL Conn.;Circ.;Socket;10ShellSize;MaleInsert;4#16PinCnts;PnlMnt;UTG |
| 分类 |
商业参数
| 其他名称 | SOU1105 | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant Part | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 最大额定电流 | :13A | 绝缘电阻 | :5000Mohm |
机械参数
| 深度 | 23.8 mm | 高度 | 23.8 mm |
| 重量 | 0.0824 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Crimp | 触点形式 | 4Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 壳体镀层 | :Nickel | 插入角度 | :10-4 |
| 本体材料 | :Glass Reinforced Thermoplastic | 总长度 | 31.7 mm |
| 第一触头极性 | PIN | 触点数 | 4 POS |
| 面板开孔形状 | :17.3mm | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Panel | 外壳尺寸-插入件（转换至） | 10-4 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | RCP |
| 系列 | :Metalok Bantam | 射频系列/标准 | UTG |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -55C to 125C |
文档与媒体
相关型号
UT06104SH
Souriau
Standard Circular Connector 4P Strt Socket Plug Size 10 CONN PLUG CABLE 4POS FEMALE Conn Metal Circular SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 10-4, CABLE connector,metalcircular,strplug,for4size16socketcont,ip68/ip69ksealing Cable socket UT0 4-pin Trim Trio UT0 4P Female 10, UT06104SH, Souriau Souriau 4路 电缆安装 连接器 插头 ,母触芯
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
UTFD12B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 10 CONN SEALING FOR WALL RCPT #10 Circular Connector Seal Receptacle Wall Mount Connector Accessories Receptacle Wall Mounting Seal 10 Shell Size SquareGasketSeal-UT SQUARE SEAL 24mm
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
UTG6-10-4SN
SOURIAU
Conn Metalok Bantam SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG CABLE FEMALE 4POS
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts
SM20ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 16-18AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire connectorcomp,size16stamped&formedcrimppincont,for18-16awgwire,gold
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

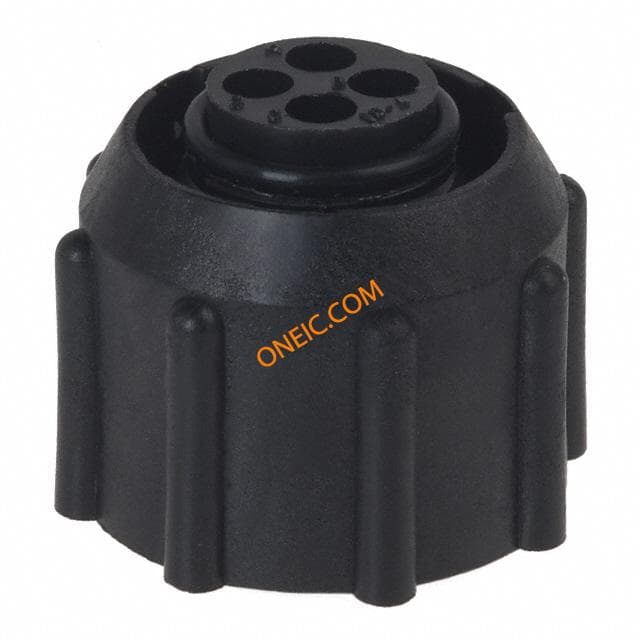

UTP6104S
