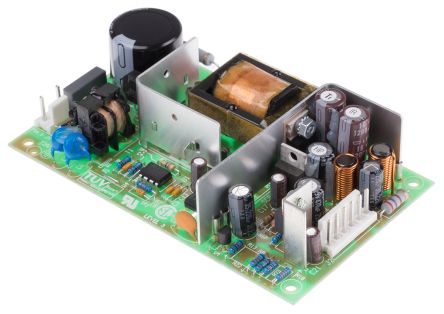

点击放大查看
GLC40AG
| 制造商 | |
| 描述 | AC/DC Power Supply Triple-OUT 5.1V/12V/-12V 3A/2A/0.4A 40W POWER SUPPLY SWITCHER 40W TRIPLE PowerSupply;AC-DC;5.1V@3A,12V@2A,-12V@0.4A;90-264VIn;OpenFrame;GLC40 SL POWER CONDOR 嵌入式开关模式电源 SMPS , 开放式封装 |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | AC to DC Power Supply |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Vendor undefined / Vendor undefined | 欧盟RoHS | Compliant |
| 认证机构 | CE, CSA, EN, IEC, UL | ||
电气参数
| 输出端 | 5.1VDC@3A,12VDC@2A,-12VDC@0.4A | 频率 | 47 to 63 Hz |
| 操作方式 | Switching | 效率 | 70(Typ) % |
| 最大功率 | 40 W | 功率（瓦） | 40W |
| 额定输出功率 | 40W | 额定电压 | 90 to 264 V |
| 电源调整率 | 2%, 6%, 5% | 负载调整率 | 2%, 6%, 5% |
| 输出电流 | 3|2|0.4 A | 输出数量 | 3 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 40W |
| 最大额定电流 | 1.3 A | 最小输入电压 | 5V, ±12V |
机械参数
| 安装类型 | Chassis Mount | 安装样式 | Panel |
| 包装数量 | 开放式 | 主要材料 | AC-DC |
| 尺寸/外形 | 4.96" L x 2.96" W x 1.20" H (126.0mm x 75.2mm x 30.5mm) | ||
产品信息
| 类型 | Switching | 样式 | Open Frame |
| 产品特性 | 2-YearsWarranty | 功能 | Y |
| 应用 | Commercial | 制造商全称 | GLC40Series |
| 配置 | OpenFrame | 适用产品/相关产品 | GLC40A |
环境参数
| 工作温度 | 0 to 50 °C | ||
