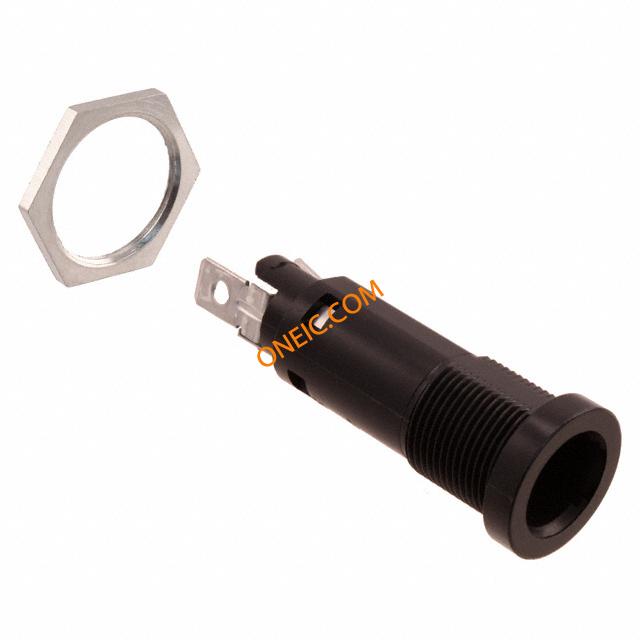

点击放大查看
0031.1631
| 制造商 | Schurter Holding AG |
| 描述 | Fuse Holder 20A 500VAC Solder Lug Panel Mount Bulk Fuse Holders SOCKET FEC 5X20 & Cap Required FEC Holder 500V panel mount FUSE HLDR CART 500V 20A PNL MNT Fuseholder; 10 A; 250; 500 V; FEC; 56.5 mm L x 19 mm Dia.; Thermoset FUSE HOLDER 10A, PANEL MT Fuseholder;10A;250,500V;FEC;56.5mmLx19mmDia.;Thermoset Fuse holder; tube fuses; 5x20mm,6,3x32mm; 10A; Mounting: on panel Fuse holder FEC ø 5 x 20/6.3 x 32 mm, 0031.1631, Schurter Schurter FEC 系列 10A 面板固定熔断器座，适用于mini熔断器, PC2 Fuse Holder SOCKET FEC 5X20 & Cap Required |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 20 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | ULRecognized/CSACertified/SEV/DE/SEMKOApproved/IEC/ENApproved/ULListed | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | VDE/UR | 材料阻燃等级 | UL94V-0 |
电气参数
| 电压 | 500V | 电容 | extraY/N |
| 额定电压 | 500 V | 极数 | 1 |
| 接触电阻 | 5mΩ | 最大额定电流 | 10 A |
| 最小供电电压 | 500(VDE)Vac/600(UL/CSA)Vac/600(UL/CSA)Vdc | 每极负载侧连接方式 | :Solder |
| 初始电阻（最小） | 5Milliohms | ||
机械参数
| 颜色 | Black | 长度 | 56.5mm |
| 重量 | 0.320993 oz | 直径 | 19mm |
| 材料（通用） | Thermoset | 包装方式 | Bulk |
| 引脚样式 | for soldering | 端接方式 | SOLDERLUG |
| 安装类型 | Panel Mount | 端子类型 | :Quick Connect |
| 接触镀层 | Tin | 安装样式 | Panel |
| 保险丝座类型 | Holder | 本体材料 | Thermoset |
| 锥体材料 | Cu | 面板厚度 | max 9mm |
| 触头材料 | Copper Alloy | 包装数量 | 50 |
| 尺寸/外形 | 56.5mmLx19mmDia. | 端接样式 | Solder Lug |
| 连接器颜色 | black | 接线端子类型 | Solder |
| 安装孔直径 | Ø16.5mm | 安装面板厚度 | (5mmx20mm)/(6.3mmx32mm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 50 | 类型 | Fuse Holder |
| 系列 | FEC | 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) |
| 保险丝类型 | 5x20/6x32 | 匹配码 | FUHSOCKETSAFESOLDERLUG |
| 照明类型 | No | 制造商全称 | 0031Series |
| 单元数量 | 1 | 关联项目 | 0031.1611, 0031.1613 |
| 标准交期 | 12 weeks | 电路数 | 1 |
| 射频系列/标准 | 0031 | 附带电池数量 | :1 |
| 适用产品/相关产品 | 5mm x 20mm, 3AG | ||
环境参数
| 防护等级 | YesY/N | 工作温度 | - 40 C to + 85 C |
