TSM-106-02-S-SH
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA SMD Tube CONN HEADER 6POS .100" SMD R/A HEADER, 2.54MM, SMT, 6WAY |
| 分类 |
商业参数
| 其他名称 | Q4527830E | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 最大额定电流 | 7 | 最小输入电压 | 475VAC |
机械参数
| 颜色 | Black | 深度 | 13.46 |
| 间距 | 2.54 mm | 高度 | 3.05 |
| 重量 | 0.06 | 包装方式 | Tube |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 15.24 |
| 触点数 | 6 | 接触件端接 | :Surface Mount Vertical |
| 位数 | 6 | 接触长度 - 配合 | 0.320" (8.13mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | :TSM | 加载位置数 | All |
文档与媒体
相关型号
BCS-106-L-S-TE
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 6POS .100" SNGL VERT Samtec BCS Series 2.54mm 6 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 6WAY Samtec BCS 系列 6路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
SSW-106-02-S-S-RA
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder RA Thru-Hole
SSW-106-02-T-S
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS SNGL TIN
SSM-106-S-SH
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder RA SMD Tube CONN RCPT .100" 6POS SNGL HORZ
SSQ-106-02-G-S
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS SNGL GOLD
SSQ-106-03-T-S-RA
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 6PS R/A SGL TIN
ESQ-106-33-S-D
samtec inc.
Conn Elevated Socket SKT 12 POS 2.54mm Solder ST Thru-Hole CONN RCPT 12POS .100" DUAL GOLD
ESW-106-33-S-S
samtec inc.
Conn Elevated Socket SKT 6 POS 2.54mm Solder ST Thru-Hole CONN SOCKET .100" 6POS PCB SNGL
SSQ-106-01-T-S
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS SNGL TIN

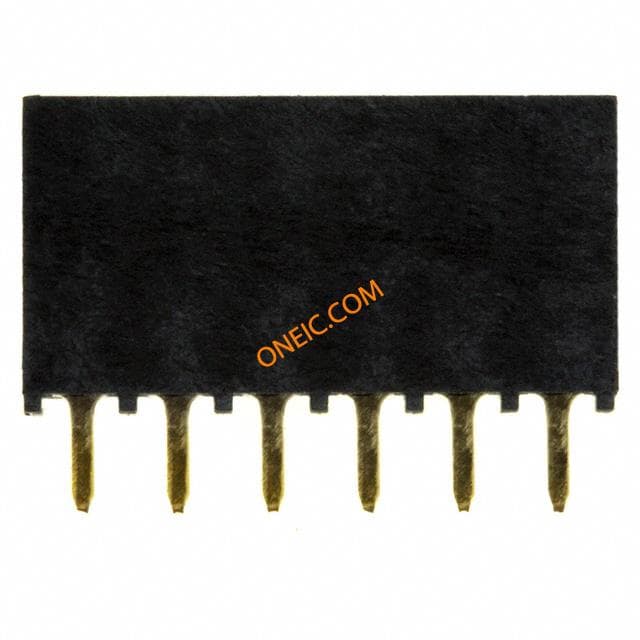

SSQ-106-01-G-S
samtec inc.
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS SNGL GOLD Samtec SSQ Series 2.54mm 6 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, SINGLE, 6WAY Samtec SSQ 系列 6路 直 2.54mm节距 通孔 印刷电路板插座, 板对板

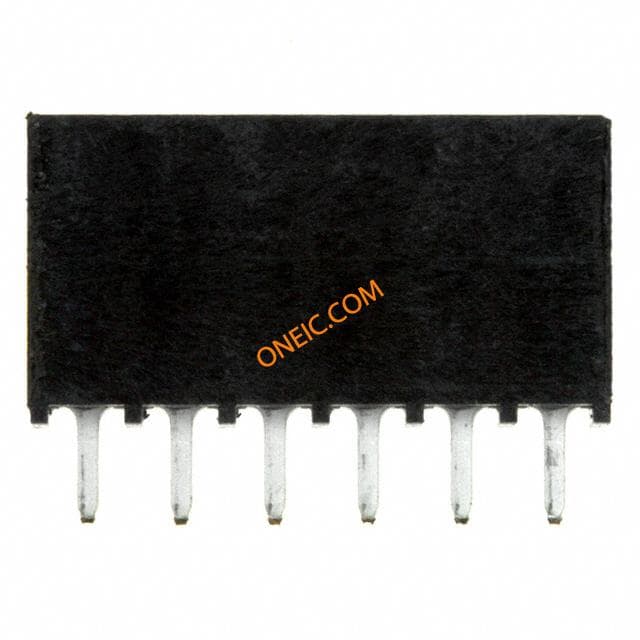

SSQ-106-01-S-S
