芯天下

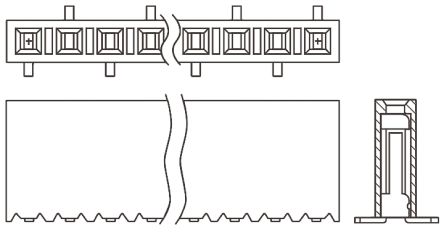

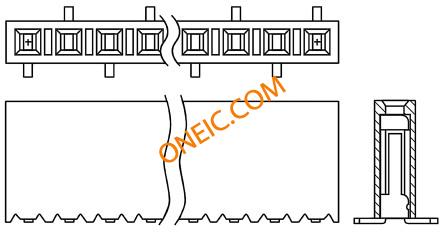

SSM-106-L-SV

点击放大查看

SSM-106-L-SV

制造商
Samtec, Inc.
描述
Conn Socket Strip SKT 6 POS 2.54mm Solder ST SMD Tube CONN RCPT .100" 6POS SNGL VERT Samtec SSM Series 2.54mm 6 Way 1 Row Straight PCB Socket Surface Mount Board to Board RECEPTACLE, 2.54MM, VERT, 6WAY Samtec SSM 系列 6路 直 2.54mm节距 表面贴装 印刷电路板插座, 板对板
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称SAM1148-06标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

额定电压475 V ac接触电阻:10mohm
最大额定电流6.9A最小输入电压475VAC

机械参数

颜色Black深度2.54
间距0.100" (2.54mm)高度7.37
重量0.001包装方式Tube
端接方式Solder触头类型Female Socket
引脚间距:2.54mm外壳颜色Black
安装类型Surface Mount连接器类型Receptacle, Pass Through
接触镀层Gold Over Nickel排数1
触头材料Phosphor Bronze壳体材料Liquid Crystal Polymer
总长度15.24连接器颜色:Black
触点数6接触件端接:Surface Mount Vertical
位数6接触镀层厚度10µin (0.25µm)

产品信息

类型Socket Strip连接器性别SKT
系列SSM加载位置数All

环境参数

工作温度:125°C

文档与媒体

PDF 文档
81944.pdf
