点击放大查看

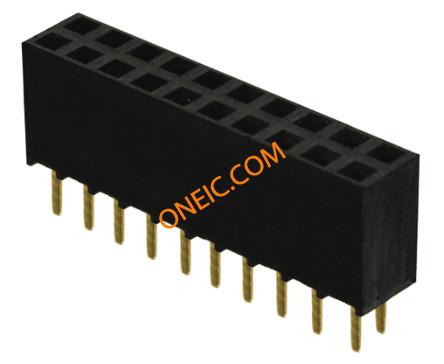

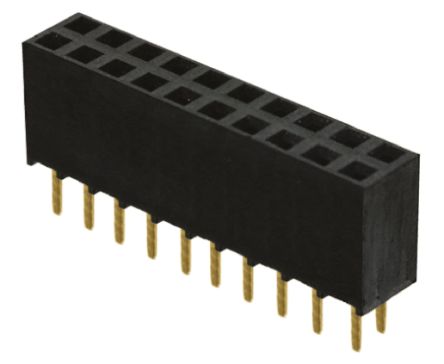

SSW-110-02-G-D

制造商	Samtec, Inc.
描述	Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 20POS DUAL GOLD Samtec SSW Series 2.54mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 20WAY Samtec SSW 系列 2行 20路直 2.54mm节距通孔印刷电路板插座, 板对板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1214-10

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

额定电压	550 V ac	接触电阻	:10mohm
最大额定电流	6.9A	最小输入电压	550VAC

机械参数

颜色	Black	深度	4.95
间距	2.54 mm	高度	8.51
重量	0.001	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	引脚间距	:2.54mm
柱间距	:2.54mm	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	2
触头材料	Phosphor Bronze	壳体材料	Liquid Crystal Polymer
总长度	25.91	连接器颜色	:Black
触点数	20	接触件端接	:Through Hole Vertical
位数	20	接触镀层厚度	20µin (0.51µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	SSW	加载位置数	All

环境参数

工作温度

:125°C

文档与媒体

PDF 文档

SSW, SSQ Spec Sheet - Thru Hole

PDF 文档

82032.pdf
