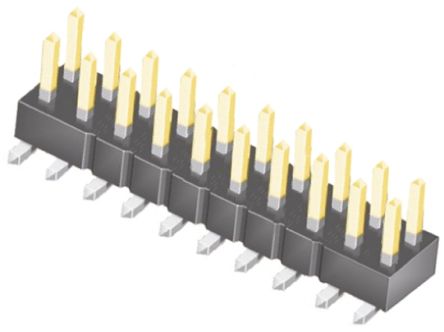

TSM-110-01-L-DV
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20POS .100" SMD GOLD Samtec TSM Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 7A CONNECTOR, HEADER, 2.54MM, SMT, 20WAY Samtec TSM 系列 2.54mm节距 20路 (2排) 直 引脚管座, 焊接端接, 7A , 表面安装 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 475 V ac | 最大额定电流 | 7A |
| 最小输入电压 | 475VAC | ||
机械参数
| 颜色 | Black | 深度 | 5.08 |
| 间距 | 2.54 mm | 高度 | 9.65 |
| 重量 | 0.0008 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 25.4 | 触点数 | 20 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 20 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TSM | 加载位置数 | All |
文档与媒体
相关型号
ESW-110-33-T-D
samtec inc.
Conn Elevated Socket SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT 20POS .100 VERT PCB

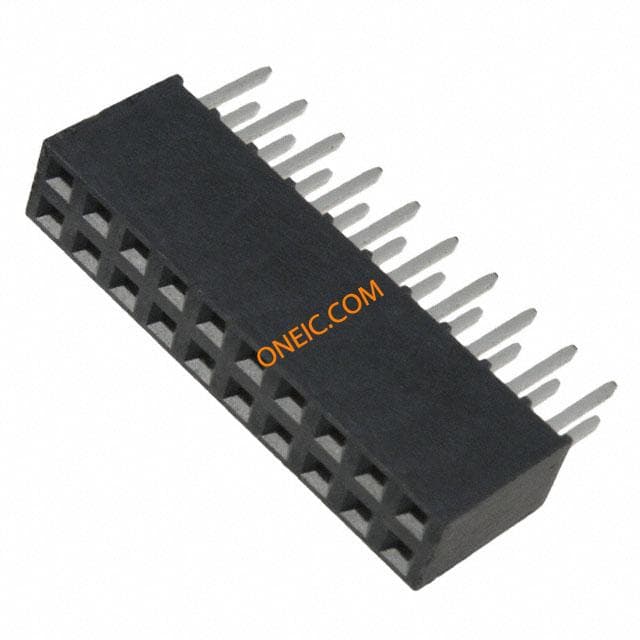

SSQ-110-02-S-D
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 20POS DUAL GOLD
BCS-110-L-D-PE
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 20POS .100" DUAL VERT SOCKET, 2.54MM, PASS-THRU, 2X10WAY
HLE-110-02-G-DV-PE
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 20POS .100" GLD

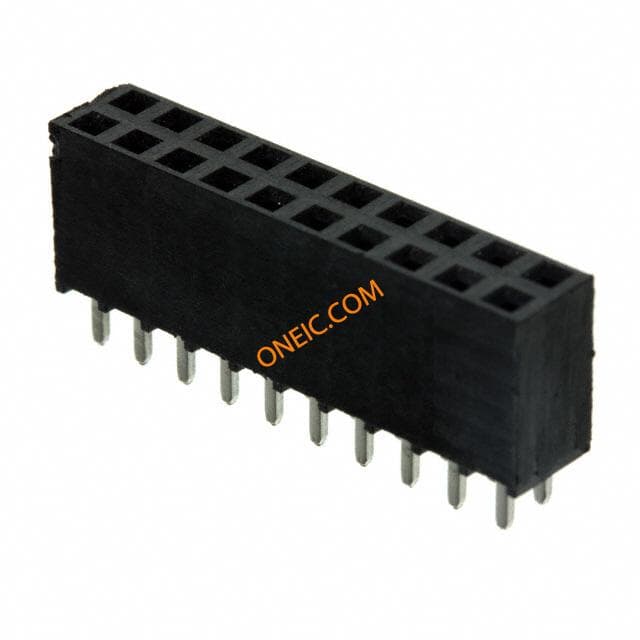

SSQ-110-01-T-D
