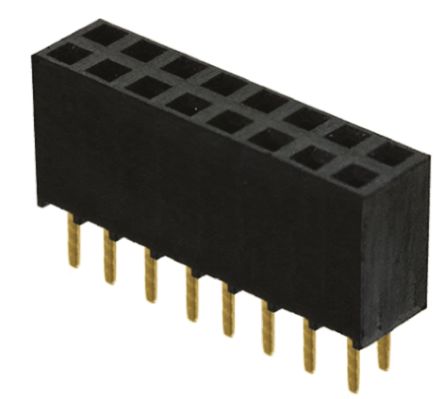

点击放大查看

SSW-108-02-G-D

制造商	Samtec, Inc.
描述	Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 16POS DUAL GOLD Samtec SSW Series 2.54mm 16 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 16WAY Samtec SSW 系列 2行 16路直 2.54mm节距通孔印刷电路板插座, 板对板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1214-08

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

电气参数

额定电压	550 V ac	接触电阻	:10mohm
最大额定电流	6.9A

机械参数

颜色	Black	间距	2.54 mm
重量	0.001	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	引脚间距	:2.54mm
柱间距	:2.54mm	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	2	触头材料	Phosphor Bronze
连接器颜色	:Black	触点数	16
接触件端接	:Through Hole Vertical	位数	16
接触镀层厚度	20µin (0.51µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	SSW	加载位置数	All

环境参数

工作温度

:125°C

文档与媒体

PDF 文档

SSW, SSQ Spec Sheet - Thru Hole

PDF 文档

82032.pdf
