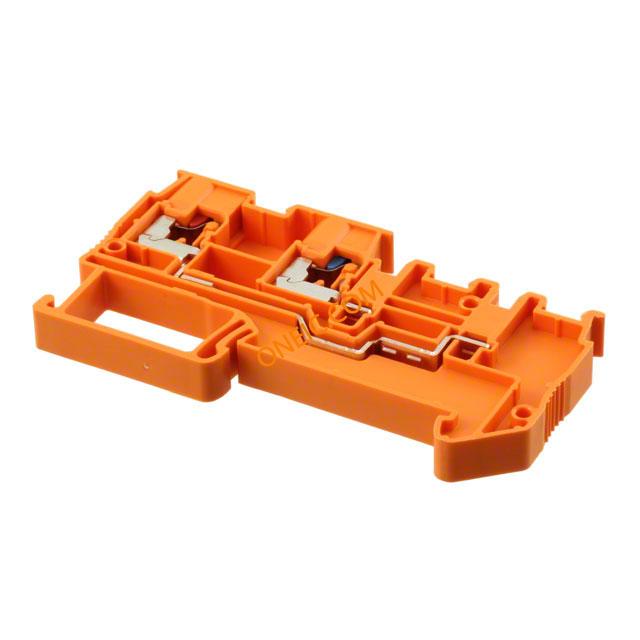

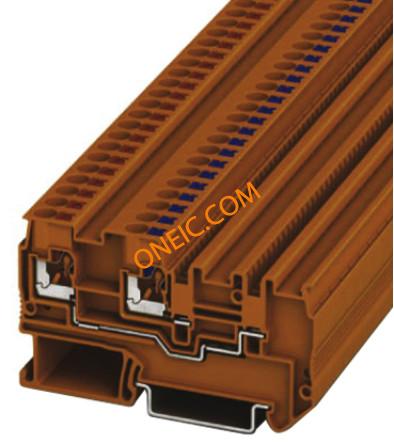

3244559

制造商	Phoenix Contact GmbH & Co. KG
描述	PTIO sensor terminal block 1.5mm orange DIN Rail Terminal Blocks Sens/Act Term Block 26-12 AWG, Push-In SENSOR/ACTUATOR TERM BLOCK 7MM Phoenix Contact 32445 Clipline 系列橙色标准 DIN 导轨端子 , 20A, 250 V
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

零件号别名

2 5/3 OG PTIO-IN PTIOIN253OG

标准包装数量

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94 V-0

电气参数

电流 - IEC	20A	IEC电压	250V
额定电压	250 V	最大额定电流	20A

机械参数

颜色	Orange	宽度	7 mm
长度	74.4 mm	导线线规	26 → 12 AWG
端接方式	Push In	电缆材料	1.5mm²
安装样式	Push-In Terminals	壳体材料	Polyamide (PA)
剥线长度（范围）	10mm	端子宽度	7.0mm
端接排数	推入式	端接样式	Push In, Spring
连接器颜色	Orange	触点数	2
位数	2	绝缘材料 - 材质	Polyamide (PA), Nylon
线规或范围 - AWG	26-12	线规或范围 - mm²	12

产品信息

类型	Sensor/Actuator	系列	32445
叠层数	三层	层数	Triple
