点击放大查看

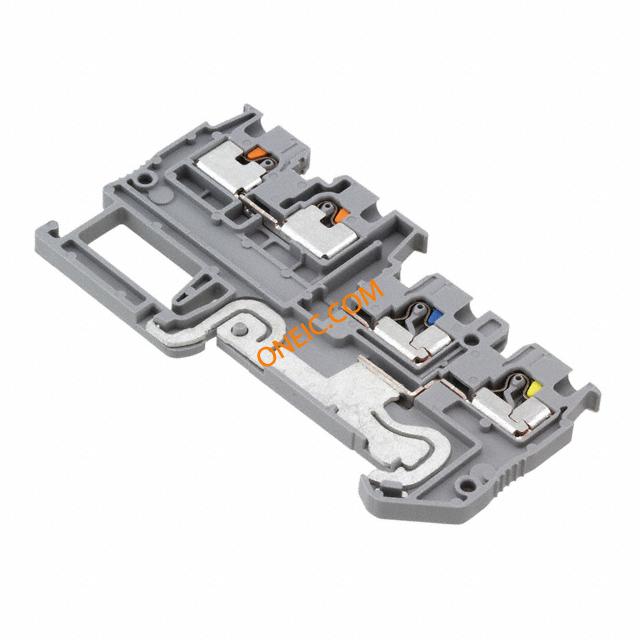

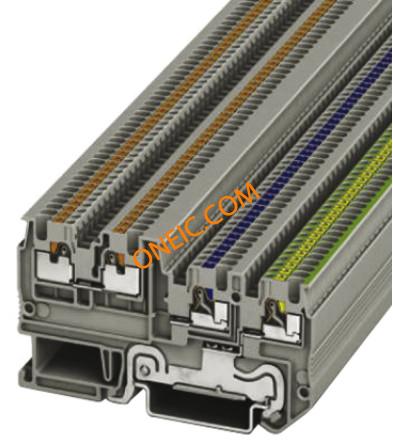

3244449

制造商	Phoenix Contact GmbH & Co. KG
描述	PTIO sensor terminal block 1.5mm grn/yel DIN Rail Terminal Blocks Sens/Act Term Block 26-14 AWG, Push-In SENSOR/ACTUATOR TERM BLOCK 3.5MM Phoenix Contact 32444 Clipline 系列灰色标准 DIN 导轨端子 , 13.5A, 250 V
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

零件号别名

1 5/S/3-PE PTIO PTIO15S3PE

标准包装数量

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94 V-0

电气参数

电流 - IEC	13.5A	IEC电压	250V
额定电压	250 V	最大额定电流	13.5A

机械参数

颜色	Gray	宽度	3.5 mm
长度	74.4 mm	导线线规	26 → 14 AWG
端接方式	Push In	电缆材料	1.5mm²
安装样式	Push-In Terminals	壳体材料	Polyamide (PA)
剥线长度（范围）	8mm	端子宽度	3.5mm
端接排数	推入式	端接样式	Push In, Spring
连接器颜色	Grey	触点数	4
位数	4	绝缘材料 - 材质	Polyamide (PA), Nylon
线规或范围 - AWG	26-14	线规或范围 - mm²	14

产品信息

类型	Sensor/Actuator	系列	32444
叠层数	三层	层数	Triple

文档与媒体

PDF 文档

3244449
